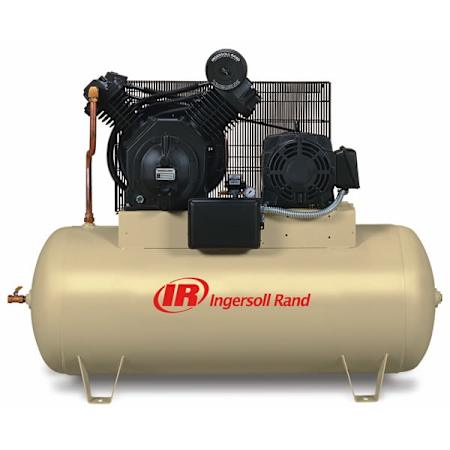

Ingersoll Rand 15 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Horizontal Tank

Product Information:

• Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings


• High Efficiency Parts
  • High-efficiency stainless steel valves
  • High-efficiency intercooler
  • High-efficiency inlet air filters with sound attenuation baffles


• 2-Piece Connection Rods: Fewer moving parts increase reliability


• Air Cooled Intercooler: Reduces compressed air temperature and condensation


• V-Block Deep Finned Cylinders: Provides 360 degrees cooling for lower operating temperature


• OSHA Compliant: Fully enclosed flywheel, belt and motor sheave


• Fully Tested: All units are prewired and thoroughly tested prior to shipment


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 65"
• Width: 36"
• Length: 83"
• Product Weight: 1239 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 50
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 15 HP
• Amperage: 48.3A
• Voltage: 208V
• Voltage: 208V
