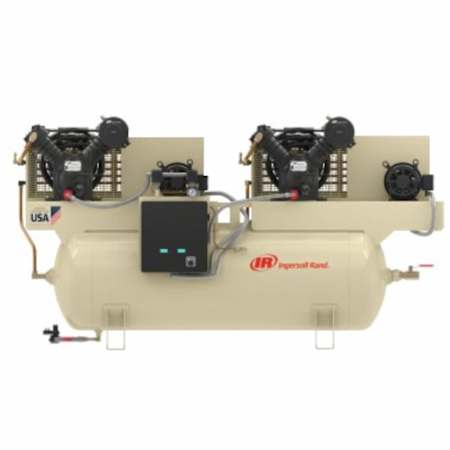

Ingersoll Rand 20 HP 120 Gal 175 Max PSI Two-Stage - Duplex Stationary Electric (230 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor

Product Information:

• Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift


• 2 Individual 10HP Motors & Pumps Mounted On A Single Tank
  • Automatic alternating of motors and pumps for even wear
  • Provides 100% backup if one pump is being serviced or inoperative


• Fully Packaged With Magnetic Starter
  • Low oil level for added protection to pump
  • Electric drain eliminates daily maintenance and prevents rust
  • Built-in aftercooler cools air between stages and reduces moisture
  • Dual control with centrifugal unloader to select which motor/pump to use


• Continuous-Duty Operation
  • 100% duty cycle from durable cast-iron cylinders and pump
  • Perfect for situations where power won't allow a single larger unit


• Open Drip Proof (ODP) Motor
  • Provides ample power for various task
  • Low 1775 RPM industrial grade motor runs quieter and cooler; lasts longer


• 2-Stage Solid Cast Iron Pump
  • Individually cast cylinders, and overhung crankshaft
  • One-piece connecting rod for easy maintenance and service
  • Long-lasting extended pump life designed for over 5,000 hours of trouble-free use


• 175 PSIG Maximum Operating Pressure
  • Automatic/start stop control with pressure control switch
  • Ideal for applications requiring high air capacity and pressure


• 120-Gallon ASME Receiver Tank
  • Heavy-duty enclosed belt guard prevents injuries
  • Auto drain is cost effective and easy to read with adjustable 'time on' & 'time off' controls


• Vibration Isolators Sold Separately
  • IR Installation Kit also includes foundation bolts & hose
  • Extends tank warranty to 5 years when added at time of purchase


• 1-Year Warranty (Unit Ships Dry)
  • 2-yr extended warranty with purchase of (2) IR Start Up Kits at time of purchase
  • Model: 47853635005 Required (See Accessories)



Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 48"
• Width: 34"
• Length: 85"
• Product Weight: 1315 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 1/2"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 70
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 20 HP
• Voltage: 230V
• Voltage: 230V
