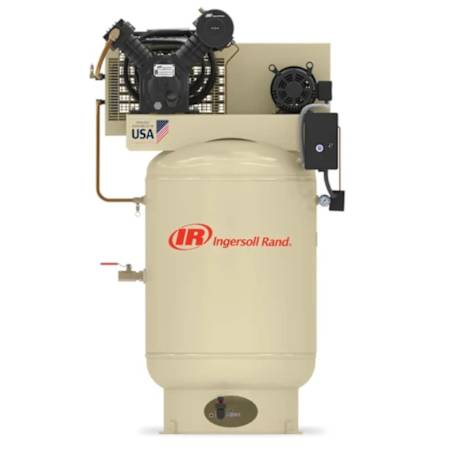

Ingersoll Rand 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor with Vertical Tank

Product Information:

• Premium Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air-cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)
  • Electric drain valve (mounted & piped)
  • Dual control - start/stop or constant speed


• Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Pump life designed for over 15,000 hours of trouble-free use
  • Oversized cast-iron balanced belt wheel & industrial-grade bearings


• V-Block Deep Finned Cylinders
  • Provides 360 degrees cooling for lower operating temperature
  • Individually cast cylinders and overhung crankshaft simplifies maintenance


• Reliable Operation
  • Fully enclosed flywheel, belt and motor sheave
  • One-piece connecting rod for minimized downtime


• American Pride
  • Proudly built in the U.S.A.
  • All units are prewired, OSHA compliant and thoroughly tested prior to shipment


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 83"
• Width: 46"
• Length: 51"
• Product Weight: 1104 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 35
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Amperage: 32.2A
• Voltage: 208V
• Voltage: 208V
