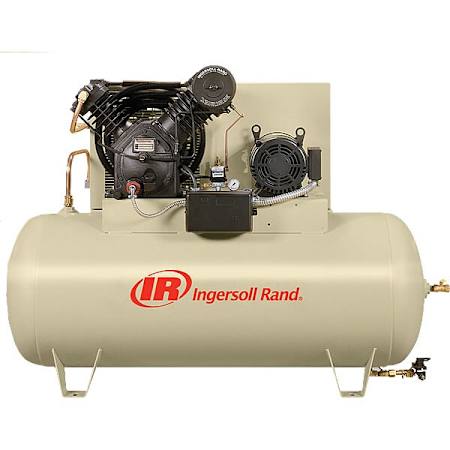

Ingersoll Rand 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (460 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor with Horizontal Tank
Model: 45465937|Item: bci5130416
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 65"
- Width: 36"
- Length: 83"
- Product Weight: 1104 lbs
- Warranty: 1 Year Commercial and 1 Year Residential

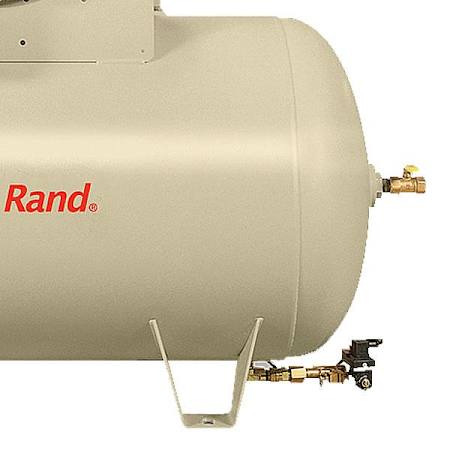

Tank Specifications:
- Electric Drain Valve Included
- Tank Outlet Size: 3/4"
- Tank Size: 120

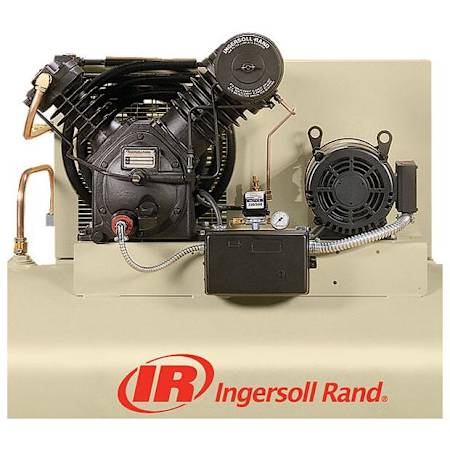

Pump Specifications:
- After Cooler Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 35
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Amperage: 14A
- Voltage: 460V
- Voltage: 460V
Manufacturer Resources
Product ManualEngineering Data SheetEngineering Data Sheet (2)2 Year Warranty Kits BrochureDimensions and Measurements
CFM | 35 |
Height | 65 in. |
Length | 83 in. |
Product Weight | 1104 lbs. |
Width | 36 in. |
Dimensions and Measurements
CFM | 35 |
Height | 65 in. |
Length | 83 in. |
Product Weight | 1104 lbs. |
Width | 36 in. |
Characteristics and Features
After Cooler Included | Yes |
CFM @ 90 PSI | 35.6 CFM |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | Yes |
CFM @ 90 PSI | 35.6 CFM |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | Yes |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 14 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Electrical and Operational Information
Amperage | 14 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 460 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
