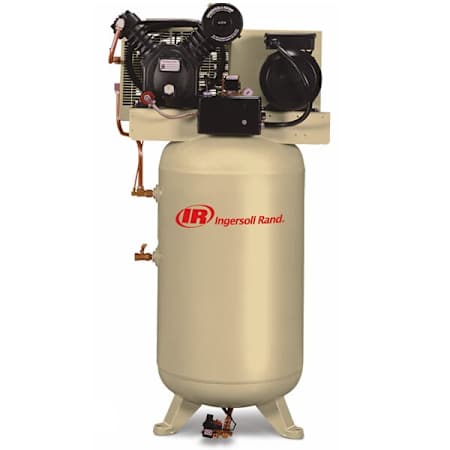

Ingersoll Rand 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 3 Phase) Value Plus Package Reciprocating Air Compressor with Vertical Tank

Product Information:

• Durable Cast Iron Design: Provides 100% duty operation


• Precision Engineered Components: Deliver maximum performance & reliability


• Individually Cast Cylinders & Overhung Crankshaft
  • One-piece connecting rod for easy maintenance & service
  • High efficiency finger valves provide consistent air delivery


• Value Plus Package
  • Electric drain keeps condensation to a minimum
  • Air cooled aftercooler extends pump life


• 175 PSIG Maximum Operating Pressure: Ideal for applications requiring high air capacity & pressure


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)


• Mounted Motor Starter Included: No need to purchase an additional starter


• Vibration Isolators Sold Separately
  • IR Installation Kit also includes foundation bolts & hose
  • Extends tank warranty to 5 years when added at time of purchase


• Ingersoll Rand Reciprocating Compressors Ship Dry

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 83"
• Width: 46"
• Length: 51"
• Product Weight: 1104 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 120

Pump Specifications:

• After Cooler Included
• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 35
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 10 HP
• Amperage: 28A
• Voltage: 230V
• Voltage: 230V
