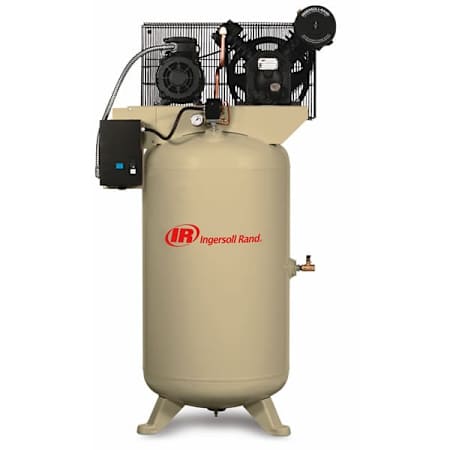

Ingersoll Rand 7.5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Reciprocating Air Compressor with Vertical Tank
Model: 45465416|Item: bci5130340
Details
Product Information:
- Continuous-Duty Operation
- Oversized industrial-grade bearings
- 100% cast-iron cylinders and pump
- Oversized cast-iron balanced belt wheel
- High Efficiency Parts
- High-efficiency stainless steel valves
- High-efficiency intercooler
- High-efficiency inlet air filters with sound attenuation baffles
- 2-Piece Connection Rods: Less moving parts increases reliability
- High-Efficiency Intercooler: Lowers compressed air temperature and reduces condensation
- OSHA Compliant
- Fully enclosed flywheel, belt and motor sheave
- Fully Tested
- All units are prewired and thoroughly tested prior to shipment
- 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 76"
- Width: 40"
- Length: 48"
- Product Weight: 611 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 24
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 7.5 HP
- Amperage: 25.3A
- Voltage: 208V
- Voltage: 208V
Manufacturer Resources
Product ManualEngineering Data Sheet (2)Engineering Data Sheet2 Year Warranty Kits BrochureDimensions and Measurements
CFM | 24 |
Height | 76 in. |
Length | 48 in. |
Product Weight | 611 lbs. |
Width | 40 in. |
Dimensions and Measurements
CFM | 24 |
Height | 76 in. |
Length | 48 in. |
Product Weight | 611 lbs. |
Width | 40 in. |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 25.3 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Electrical and Operational Information
Amperage | 25.3 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 7.5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 208 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
