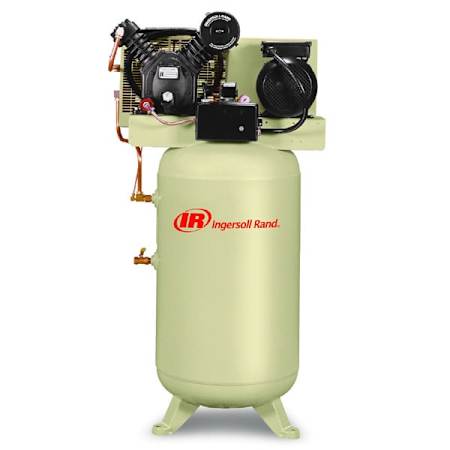

Ingersoll Rand 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (208 Volt 3 Phase) Fully Packaged Reciprocating Air Compressor

Product Information:

• Fully Packaged
  • E-series motor starter (mounted & wired)
  • Relief valve & discharge ball valve (mounted & piped)
  • Air cooled aftercooler (mounted & piped)
  • Low oil level shutdown switch (mounted & wired)
  • Electric drain valve (mounted & piped)
  • Automatic start/stop control with pressure switch


• Continuous-Duty Operation
  • 100% cast-iron cylinders and pump
  • Oversized cast-iron balanced belt wheel
  • Oversized industrial-grade bearings


• V-Block Deep Finned Cylinders: Provides 360° cooling for lower operating temperature


• OSHA Compliant: Fully enclosed flywheel, belt and motor sheave


• Fully Tested: All units are prewired and throughly tested prior to shipment


• American Pride: Proudly built in the U.S.A.


• 1-Year Warranty (Unit Ships Dry): 1 or 2-year extended warranty available with purchase of IR Start Up Kit at time of purchase (See Accessories)

Specifications:

• Certifications: ASME, CSA, and UL
• Fuel Type: Electric
• Height: 76"
• Width: 40"
• Length: 48"
• Product Weight: 597 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Oil System Type: Splash Lubricated
• Lubrication Type: Oil Lubricated
• CFM: 17
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 5 HP
• Amperage: 17.5A
• Voltage: 208V
• Voltage: 208V
