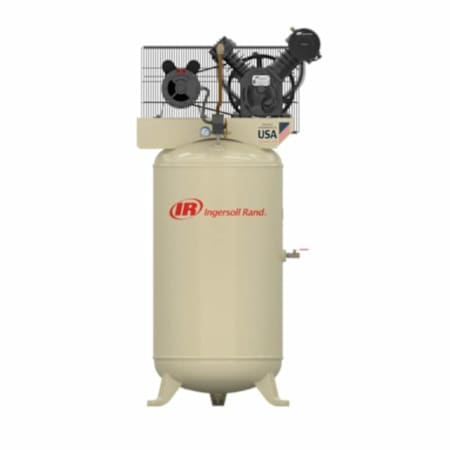

Ingersoll Rand 5 HP 60 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 1 Phase) Reciprocating Air Compressor with Vertical Tank
Model: 45464922|Item: bci5130428
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 69"
- Width: 33"
- Length: 31-1/2"
- Product Weight: 435 lbs
- Warranty: 1 Year Commercial and 1 Year Residential
Tank Specifications:
- Tank Outlet Size: 1/2"
- Tank Size: 60
Pump Specifications:
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 14
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 28A
- Voltage: 230V
- Voltage: 230V
Manufacturer Resources
Product ManualEngineering Data SheetEngineering Data Sheet (2)2 Year Warranty Kits BrochureDimensions and Measurements
CFM | 14 |
Height | 69 in. |
Length | 31.5 in. |
Product Weight | 435 lbs. |
Width | 33 in. |
Dimensions and Measurements
CFM | 14 |
Height | 69 in. |
Length | 31.5 in. |
Product Weight | 435 lbs. |
Width | 33 in. |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 1/2" |
Tank Size | 60 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 28 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 28 |
Drive Type | Belt Drive |
Electrical Phases | 1 |
Fuel Type | Electric |
Grade | Entry |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 1 Year Commercial, 1 Year Residential |
