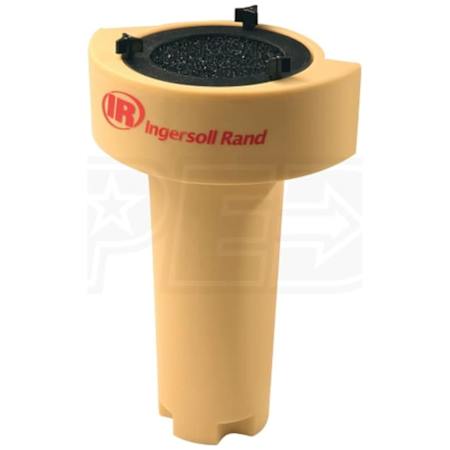

Ingersoll Rand Compressed Air PolySep Oil Water Separator (5-15HP)

Product Information:

• The Responsible Choice
  • Removes the broadest range of coolants from condensate
  • Environmentally sound materials reduce waste removal costs


• Effective: Capable of providing discharge levels as low as 15 mg/l


• Non-Corrosive Materials
  • Doesn't require electrical power for operation
  • Absorbs even highly emulsified lubricants like polyglycols


• Simple Yet Efficient Design: Few moving parts for minimal maintenance & downtime


• Removable Modules: Simple to replace about once a year or after 4,000 hours


• Fits Many Air Compressors Up To 15 HP
  • Oil outlet: 3/4" NPT; water outlet: 3/4" NPT
  • Maximum water flow: .55 gallons per hour
  • Maximum water volume: 1 gallon per hour
  • Maximum absorbed lubricant: 3 pounds
  • Maximum air flow 70 CFM; condensate inlet 1/2" NPT
  • Discharge can be routed directly into a floor drain
  • Unit shape differs from image; plastic catch bottle not included



Specifications:

• Product Weight: 15 lbs
