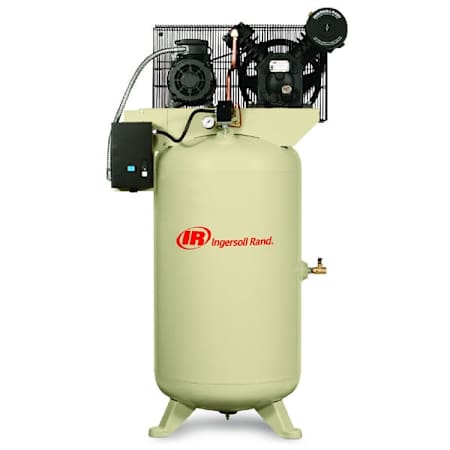

Ingersoll Rand 5 HP 80 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt 3 Phase) Reciprocating Air Compressor with Vertical Tank
Model: 45465135|Item: bci5121462
$3,399.99
Made To Order
Details
Specifications:
- Certifications: ASME, CSA, and UL
- Fuel Type: Electric
- Height: 76"
- Width: 40"
- Length: 48"
- Product Weight: 597 lbs
- Warranty: 40 Day Commercial and 48 Day Residential
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 80
Pump Specifications:
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 17
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 5 HP
- Amperage: 15.2A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 16.8 |
Height | 76 in. |
Length | 48 in. |
Product Weight | 597 lbs. |
Width | 40 in. |
Dimensions and Measurements
CFM | 16.8 |
Height | 76 in. |
Length | 48 in. |
Product Weight | 597 lbs. |
Width | 40 in. |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | No |
Oil System Type | Splash Lubricated |
Pump Material | Cast Iron |
Tank Orientation | Vertical |
Tank Outlet Size | 3/4" |
Tank Size | 80 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 15.2 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Electrical and Operational Information
Amperage | 15.2 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 5 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 40 Day Commercial, 48 Day Residential |
Warranty and Product Information
Certifications | ASME, CSA, UL |
Manufacturer Warranty | 40 Day Commercial, 48 Day Residential |
