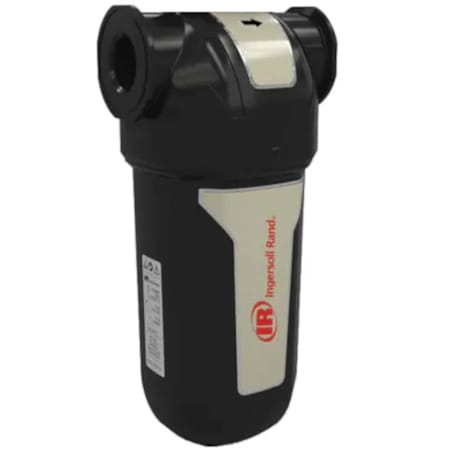

Ingersoll Rand 1-1/2" 250 PSI Activated Carbon Compressed Air Filter (235 CFM)

***Pressure Gauge Sold Separately***

Product Information:

• Activated Carbon Air Filter
  • Oil vapor & hydrocarbon odor removal
  • High quality air as defined by ISO 8573-1:2010
  • Precede with a Grade H filter; max operating temp 86°F (30°C)


• Efficient Flow Path
  • Deep pleated element design minimizes pressure drop
  • Reduced turbulence enhances compressor efficiency


• Zero Clearance Design: Minimal space requirements install where other filters won't fit


• No-Touch Filter Element
  • Efficient operation for up to 1 year between element change-outs
  • Element changes are easy- just dump out the old, drop in the new
  • Helps reduce overall ownership costs


• All Aluminum Die-Cast Body: Proprietary coating inside & out protects against corrosion


• Patented Dual Indicator: Shows differential pressure drop & operating efficiency

Specifications:

• Product Weight: 5.2 lbs
• Height: 16-1/8"
• Length: 5"

Air Tool Specifications:

• CFM: 235

Air Dryer Specifications:

• Air Inlet Size: 1-1/2"
• Air Outlet Size: 1-1/2"
