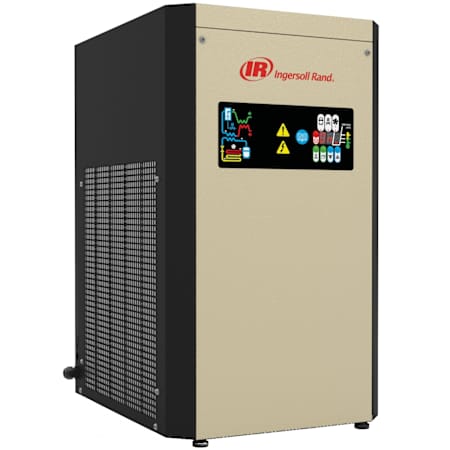

Ingersoll Rand High Temperature Refrigerated Air Dryer 5HP (15 CFM)

Product Information:

• For Use With Compressors Without Aftercoolers Up To 180°F: Keeps damp air from rusting tools & washing away lubricants


• ISO Class 6 Dryer Is Reliable And Operationally Efficient: 15 CFM with exceptionally low pressure drop; 5 HP motor


• Built In Aftercoolers & General Purpose Coalescing Filters
  • Integral stainless steel moisture separation for compressors that don't have aftercoolers
  • Class H optimized pressure between 35° - 40°F dewpoint
  • Temperature driven variable speed fan for continuous heat removal
  • Electronic solenoid drain valve for optimal performance


• User Friendly Controls: Simple, easy to read control panel uses a color coded diagram


• Environmentally Friendly
  • Uses 115V, 1 phase power and R134A refrigerant
  • Sturdy, powder coated finish
  • Corrosion resistant aluminum plate heat exchanger


• Professional Features
  • Maximum pressure of 203PSI
  • Maximum inlet temperature of 200°F; maximum ambient temp 122°F
  • 1/2" NPT inlet & outlet fittings
  • Includes a prefilter/moisture separator trap to remove oil



Specifications:

• Warranty: 1 Year Commercial and 1 Year Residential
• Product Weight: 85 lbs
• Fuel Type: Electric
• Height: 26"
• Length: 20"

Air Dryer Specifications:

• After Cooler Included
• Air Inlet Size: 1/2"
• Air Outlet Size: 1/2"
• Automatic Drain Valve Included
• Horsepower: 5 HP

Pump Specifications:

• After Cooler Included
• After Cooler Included
