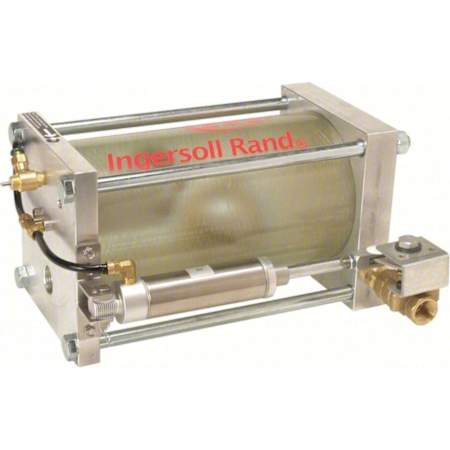

Ingersoll Rand PNLD Automatic No Loss Drain Valve (3/4" NPT)

Product Information:

• PNLD II Fully Pneumatic No-Loss Drain
  • Removes condensate with high levels of rust, oil and eliminates air loss
  • Requires no electricity, pre-settings, or manual intervention; Ideal for commercial & industrial applications


• Easy To Install: Multiple 3/4" inlet orifices for ease of installation & 1/2" drain outlet


• Highly Efficient & Versatile
  • Operates virtually clog-free
  • Work with system components including compressors, receiver tanks, in-line filters, water separators, dryers & coolers


• Rugged Construction
  • Stainless steel float and air cylinder that accommodate higher operating pressures
  • Drain valves use Viton® seals to prevent deterioration from lubricant carryover in the condensate


• Robust Valve Design
  • Uses magnetic force to ensure positive opening
  • Closing to prevent metal particulates from clogging the drain
  • Innovative ball valve support and positioning system impedes side loading
  • Rifle drilled discharge port ensures that scale and rust exit through the full port ball valve


• Clear Cylinder & Body Design: Allows for easy visual inspection of operation and cycling verification


• Specifications:
  • Handles high volume compressed air systems up to 30,000 cfm (850 m3/ min)
  • Extended maximum operating pressure up to 750 psi
  • Maximum liquid temperature of 180°F (82°C) expands operating range



Air Tool Specifications:

• Drive Size: 3/4"
