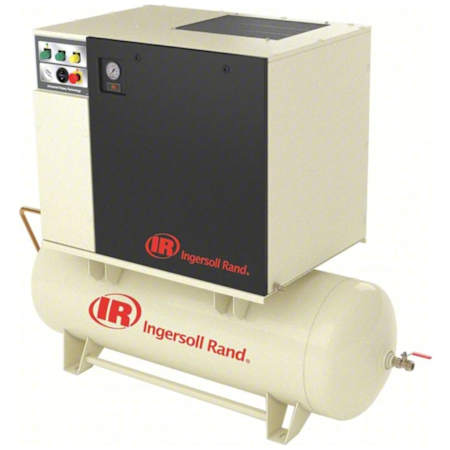

Ingersoll Rand 7.5 HP 80 Gal 125 Max PSI Stationary Electric (460 Volt 3 Phase) Standard Air Compressor Total Air System

Product Information:

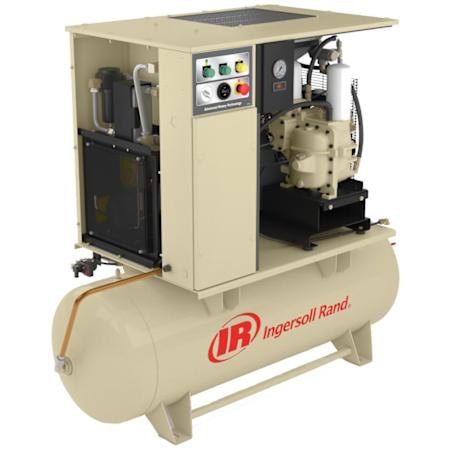

• Compact And Efficient Rotary Screw Is Ideal For Industrial Use: Runs cooler, lasts longer in continuous duty applications


• Total Air System (TAS) Refrigerated Dryer Is Energy Star Rated: Stainless steel heat exchanger


• Easy To Operate With Smart, Energy Efficient Controls
  • Reliable and effective load/no load control with auto stop/start
  • Panel mounted dew point indicator


• Dual Filters With Easy Access And Simple Ducting: Mounted and piped before and after the compressor


• High Efficiency Moisture Separation

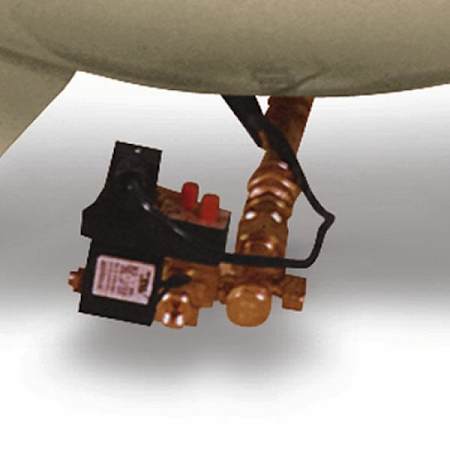

  • Single point condensate drain system
  • 115 volt electric drain needs to be plugged in separately


• 70% Fewer Connections
  • Smart integration eliminates leaks & pressure drops
  • Maximizes reliability and profits with more air for your money


• Whisper Quiet Operation Allows Installation Closer To Work Area: 65dBA ensures a better & safer work environment, reduces costs


• 125 PSI Maximum Pressure; 460 Volt, 3 Phase Power Required

Specifications:

• Certifications: ASME
• Fuel Type: Electric
• Height: 61"
• Width: 29"
• Length: 54"
• Product Weight: 1000 lbs
• Warranty: 1 Year Commercial and 1 Year Residential

Included Accessories:

• Air Dryer Included
• Filter Included

Tank Specifications:

• Electric Drain Valve Included
• Tank Outlet Size: 3/4"
• Tank Size: 80

Pump Specifications:

• After Cooler Included
• Lubrication Type: Oil Lubricated
• CFM: 28
• Drive Type: Belt Drive

Engine and Motor Specifications:

• Horsepower: 7.5 HP
• dB Rating: 65
• Voltage: 460V
