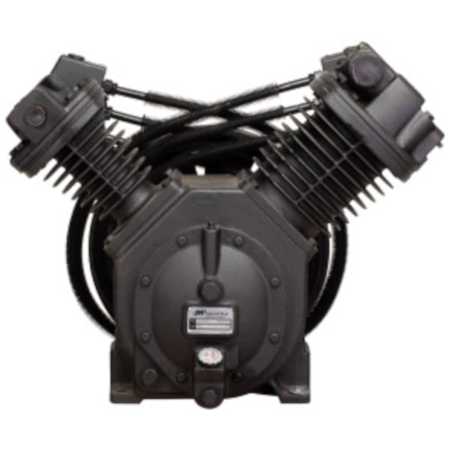

Ingersoll Rand 15-HP Two-Stage Bare V-Twin Air Compressor Pump for 7100V ASandS Compressor (50 CFM @ 175 PSI)

Product Information:

• 15-HP Ingersoll Rand 7100V AS&S Electric OEM Replacement Pump
  • Provides maximum performance and efficiency
  • Two-stage splash lubricated belt-driven pump; 175 PSI max
  • Cast iron construction and precision-engineered quality components


• Durable 2 Cylinder Cast Iron Pump
  • Produces 50.5 CFM @ 125 PSI; 50 CFM @ 175 PSI
  • Easy to repair removable cylinders with 360 degree radial fins to eliminate hot spots
  • Separately cast individually bolted, V-type configuration & precision honed for low oil carryover


• 1100 Maximum RPM
  • Delivers high performance; 750 minimum RPM
  • 100 deg.F maximum operating temperature


• Rugged Cast Iron Flywheel
  • Balanced to keep vibration to a minimum
  • Fan type flywheel forces a "cyclone" air blast to provide cooling cylinders and intercooler


• Continuous-Duty Operation
  • Precision-balanced overhung crankshaft runs smoothly and quietly
  • Oversized cast-iron balanced belt wheel and industrial-grade bearings
  • Durable canister inlet filter, one-piece connecting rod, and reliable stainless steel valves
  • Finned copper intercooler lowers operating temperature, extends pump life & improves efficiency


• Specifications:
  • Bore: 5.5" & 3"
  • Stroke: 4"
  • Sheave OD: 18"
  • Sheave PD: 17.5"
  • Inlet size: 1.5" NPT
  • Discharge size: 1" NPT
  • Belt Type / Quantity: B/2
  • 80 oz. capacity oil reservoir (Pump oil not included)


• Compatibility:: Only fits Ingersoll Rand 7100V AS&S electric-driven reciprocating compressors


• 1-Year Limited Manufacturer Warranty

Specifications:

• Warranty: 1 Year Residential
• Warranty: 1 Year Residential
• Product Weight: 460 lbs
• Height: 32"
• Length: 44"
• Width: 32"

Air Tool Specifications:

• CFM: 50

Air Dryer Specifications:

• After Cooler Included
• Horsepower: 15 HP

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• CFM: 50
• Drive Type: Belt Drive
