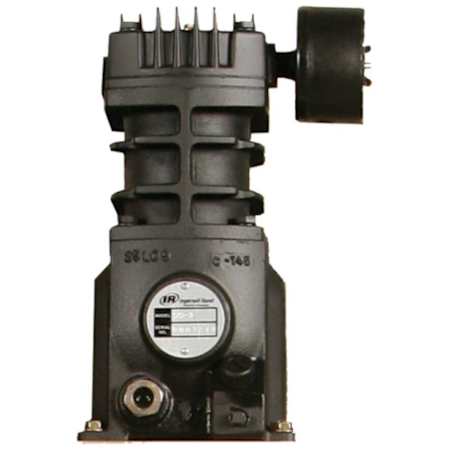

Ingersoll Rand 5-HP Single-Stage Bare In-line Twin Air Compressor Pump for IR SS4 and SS5 Compressors (15.5 CFM @ 135 PSI)

Product Information:

• 5-HP Ingersoll Rand SS4 & SS5 OEM Replacement Pump
  • Continuous-duty operation provides maximum performance
  • Cast iron construction and precision-engineered quality components


• Durable 2 Cylinder Cast Iron Pump
  • Produces 18.1 CFM @ 90 PSI; 15.5 CFM @ 135 PSI
  • Single-stage splash lubricated belt-driven pump; 135 PSI max


• 1000 Maximum RPM
  • Delivers high performance; 500 minimum RPM
  • 104 deg.F maximum operating temperature


• Rugged Cast Iron Flywheel: Balanced to keep vibration to a minimum and smoothes out delivery of power


• Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 33.8 oz. capacity oil reservoir (Pump oil not included)


• Specifications:
  • Bore: 3.5" & 3.5"
  • Stroke: 2.5"
  • Sheave OD: 14.8"
  • Sheave PD: 14.5"
  • Inlet size: 3/4" NPT
  • Discharge size: 1/2" NPT (Gas-3/8")
  • Belt Type / Quantity: 1/A (Gas-BX)


• Compatibility:: Only fits Ingersoll Rand SS4 & SS5 compressor


• 1-Year Limited Manufacturer Warranty

Specifications:

• Warranty: 1 Year Residential
• Warranty: 1 Year Residential
• Product Weight: 106 lbs
• Height: 21"
• Length: 19"
• Width: 14"

Air Tool Specifications:

• CFM: 16

Air Dryer Specifications:

• After Cooler Included
• Horsepower: 5 HP

Pump Specifications:

• Oil Sight Glass Included
• Oil System Type: Splash Lubricated
• CFM: 16
• Drive Type: Belt Drive
