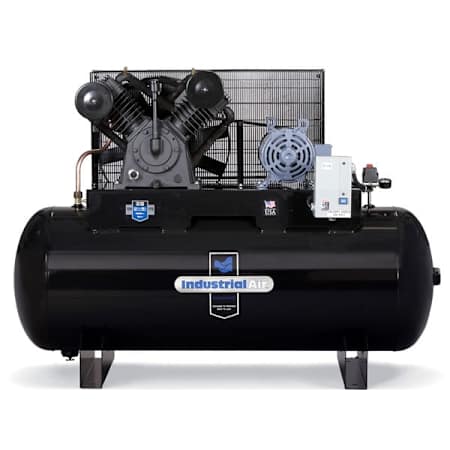

Industrial Air 10 HP 120 Gal 175 Max PSI Two-Stage Stationary Electric (230 Volt) Reciprocating Air Compressor
Model: IH9919910|Item: bci5120831
$4,003.88
4 In Stock
Details
Product Information:
- Patented Pump Design & Piston: Runs cooler, lasts longer
- Improved compression efficiency
- Patented Asymmetrical Cooling Fins: Draws heat away from the precision bored cylinders
- Patented Cast Iron Flywheel: Large, extended fins improve pump cooling & lower RPMs
- Century Industrial Class 10-HP Electric Motor
- High quality 4 pole, 1725 RPM, NEMA rated
- Factory pre-wired for your 230 volt, three phase system
- Pre-Wired Magnetic Starter: Saves time and money
- 120 Gallon ASME Tank
- Enough power to operate more than 1 tool at a time
- 35.0 CFM at 100 PSI; 33.6 CFM at 175 PSI; 3/4" air outlet
- Unique Metal Belt Guard Design: Improves pump cooling by as much as 60% over other designs
- 2 Year Limited Factory Warranty: Purchase & use of maintenance kit doubles the pump warranty
Specifications:
- Certifications: ASME
- Fuel Type: Electric
- Height: 60"
- Width: 29"
- Length: 75"
- Product Weight: 920 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 120
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 35
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Horsepower: 10 HP
- Amperage: 25A
- Voltage: 230V
- Voltage: 230V
Dimensions and Measurements
CFM | 35 |
Height | 60 in. |
Length | 75 in. |
Product Weight | 920 lbs. |
Width | 29 in. |
Dimensions and Measurements
CFM | 35 |
Height | 60 in. |
Length | 75 in. |
Product Weight | 920 lbs. |
Width | 29 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
CFM Rated @ | 100 PSI |
Electronic Drain Valve Included | No |
Lubrication Type | Oil Lubricated |
Mounting Type | Stationary |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 120 |
Tank Type | Hot Dog |
Electrical and Operational Information
Amperage | 25 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Electrical and Operational Information
Amperage | 25 |
Drive Type | Belt Drive |
Electrical Phases | 3 |
Fuel Type | Electric |
Grade | Commercial |
Horsepower | 10 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | Magnetic Start |
Voltage | 230 |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
