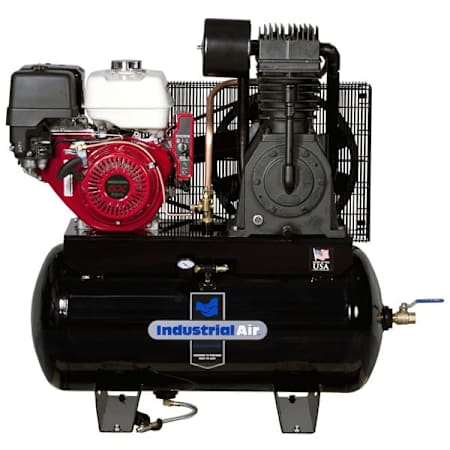

Industrial Air 13 HP 30 Gal 175 Max PSI 22 CFM Two-Stage Truck Mount Gas Reciprocating Air Compressor
Model: IH1393075|Item: bci5120807
Details
Product Information:
- Honda GX390 389cc Commercial Grade Engine
- Powerful, quiet and dependable
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Automatic Low Oil Shutdown: Protects the engine
- Cast Iron 2-Stage Pump

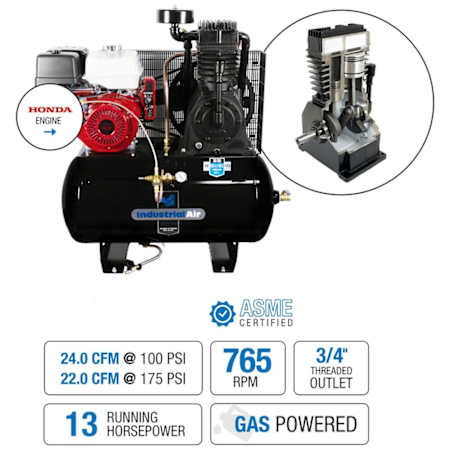

- Produces 24 CFM at 100 PSI; 22 CFM at 175 PSI
- Ideal for service trucks and contractors running multiple tools
- Patented Pump Design: Cast iron cylinder head and flywheel run cooler, last longer
- Oversized Industrial Grade Bearings: Increases durability and pump life
- Patented Cast Iron Flywheel: Large extended fins improve pump cooling; lowers RPM
- High Efficiency Finned Copper Intercooler: Increases performance & valve life
- Extra Capacity Oil Reservoir: Lower oil tempertures & easier maintenance
- 30 Gallon Tank With Truck Mounts: 175 PSI maximum; ASME certified for safety
Specifications:
- Certifications: ASME
- Fuel Type: Gas
- Height: 48"
- Width: 23-1/2"
- Length: 46"
- Product Weight: 497 lbs
- Warranty: 2 Year Commercial and 2 Year Residential
Included Accessories:
- Pressure Gauge Included
Tank Specifications:
- Tank Outlet Size: 3/4"
- Tank Size: 30
Pump Specifications:
- Oil Sight Glass Included
- Oil System Type: Splash Lubricated
- Lubrication Type: Oil Lubricated
- CFM: 22
- Drive Type: Belt Drive
Engine and Motor Specifications:
- Honda GX
- Horsepower: 13 HP
Dimensions and Measurements
CFM | 22 |
Height | 48 in. |
Length | 46 in. |
Product Weight | 497 lbs. |
Width | 23.5 in. |
Dimensions and Measurements
CFM | 22 |
Height | 48 in. |
Length | 46 in. |
Product Weight | 497 lbs. |
Width | 23.5 in. |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Characteristics and Features
After Cooler Included | No |
Air Dryer Included | No |
Auto Idle Mode | No |
CFM Rated @ | 175 PSI |
Electronic Drain Valve Included | No |
Engine Brand | Honda GX |
Engine Low Oil Shutdown | Yes |
Lubrication Type | Oil Lubricated |
Mounting Type | Truck Mount |
Oil Sight Glass Included | Yes |
Oil System Type | Splash Lubricated |
Pressure Gauge Included | Yes |
Pump Low Oil Shutdown | No |
Pump Material | Cast Iron |
Tank Orientation | Horizontal |
Tank Outlet Size | 3/4" |
Tank Size | 30 |
Tank Type | Hot Dog |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Electrical and Operational Information
Drive Type | Belt Drive |
Fuel Type | Gas |
Grade | Contractor |
Horsepower | 13 |
Maximum Operating Pressure (PSI) | 175 |
Stages | Two-Stage |
Starting System | 12-Volt Key Start w/ Recoil |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
Warranty and Product Information
Certifications | ASME |
Manufacturer Warranty | 2 Year Commercial, 2 Year Residential |
