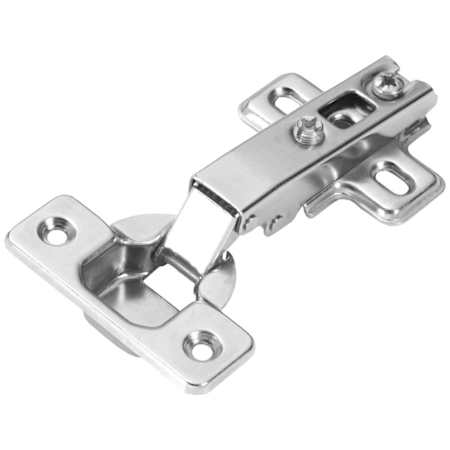

Hickory Hardware Full Overlay Concealed Euro Cabinet Door Hinge with 105 Degree Opening Angle and Self Close Function - Pack of 10
Model: P5107-14-10B|Item: bci4405796
$97.98
Finish: Polished Nickel -
25 In Stock
Pack Size
Single
$10.98
10-Pack
$97.98
10-Pack
Free Shipping!
Leaves the Warehouse in 2 to 4 business days
-Details
Features:
- Includes (10) hinges in each order
- Constructed of high quality steel for durability and dependability
- Covered by Hickory Hardware's limited lifetime manufacturer warranty
- Self closing function will allow your cabinet door to close firmly and securely
- Adjustable in one direction only
- Designed for a 105 degree opening angle
- All necessary mounting hardware is included
Specifications:
- Hinge Mount: Full Overlay
- Installation Type: Screws
- Cup Diameter: 1-3/8"
- Bore Distance: 3/16"
- Cup Depth: 7/16"
- Mount Centers: 1-3/4"
Dimensions and Measurements
Boring Distance | 0.2 mm |
Cup Depth | 0.45 in. |
Cup Depth mm | 11.5 mm |
Cup Diameter | 1.375 in. |
Cup Diameter mm | 35 mm |
Max Cabinet Door Thickness | 0.75 in. |
Max Cabinet Door Thickness mm | 19 mm |
Mount Centers | 1.77 in. |
Mount Centers mm | 45 mm |
Opening Angle | 105 |
Overlay | Full |
Overlay mm | 19 mm |
Product Weight | 1.6 lbs. |
Quantity | 10 |
Dimensions and Measurements
Boring Distance | 0.2 mm |
Cup Depth | 0.45 in. |
Cup Depth mm | 11.5 mm |
Cup Diameter | 1.375 in. |
Cup Diameter mm | 35 mm |
Max Cabinet Door Thickness | 0.75 in. |
Max Cabinet Door Thickness mm | 19 mm |
Mount Centers | 1.77 in. |
Mount Centers mm | 45 mm |
Opening Angle | 105 |
Overlay | Full |
Overlay mm | 19 mm |
Product Weight | 1.6 lbs. |
Quantity | 10 |
Included Components
Installation Hardware Included | Yes |
Included Components
Installation Hardware Included | Yes |
Characteristics and Features
3-Way Adjustable | No |
Adjustable Depth | No |
Adjustable Height | No |
Adjustable Side to Side | Yes |
Arm Type | Straight Arm |
Bulk Pack | Yes |
Cabinet Type | Panel (Frameless) |
Demountable | No |
Hinge Mount | Full Overlay |
Hinge Type | Concealed Euro |
Installation Type | Screw |
Material | Steel |
Self Closing | Yes |
Soft Close | No |
Characteristics and Features
3-Way Adjustable | No |
Adjustable Depth | No |
Adjustable Height | No |
Adjustable Side to Side | Yes |
Arm Type | Straight Arm |
Bulk Pack | Yes |
Cabinet Type | Panel (Frameless) |
Demountable | No |
Hinge Mount | Full Overlay |
Hinge Type | Concealed Euro |
Installation Type | Screw |
Material | Steel |
Self Closing | Yes |
Soft Close | No |
Warranty and Product Information
Approved for Commercial Use | No |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Series | Concealed Framelss Hinges |
Warranty and Product Information
Approved for Commercial Use | No |
Country Of Origin | China |
Manufacturer Warranty | Limited Lifetime |
Series | Concealed Framelss Hinges |
