Hickory Hardware Full Pair - 1055 Series 22 Inch Full Extension Side Mount Ball Bearing Drawer Slide with 100lb Weight Capacity Cadmium
Hickory Hardware Full Pair - 1055 Series 22 Inch Full Extension Side Mount Ball Bearing Drawer Slide with 100lb Weight Capacity Cadmium
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image

Hickory Hardware Full Pair - 1055 Series 22 Inch Full Extension Side Mount Ball Bearing Drawer Slide with 100lb Weight Capacity

Model: P1055/22-2C
|
Item: bci2723017

$32.94
Finish: Cadmium -
250 In Stock

Length

  • Cadmium
    12"
    $31.94
  • Cadmium
    14"
    $30.22
  • Cadmium
    16"
    $30.59
  • Cadmium
    18"
    $30.23
  • Cadmium
    20"
    $31.03
  • Cadmium
    22"
    $32.94
  • Cadmium
    24"
    $41.37

Quantity

Cadmium
Single
$32.94
Cadmium
Pack of 5
$162.16
placeholder
Free Shipping on orders over $49.00!
Leaves the Warehouse in 2 to 4 business days
-
Return & Shipping Details

Details

Features:

  • Designed to support up to 100 pounds of weight
  • Mounts to the side of the drawer
  • Provides easy access to the drawer with full extension slides
  • Steel ball bearings for smooth operation
  • Spring mechanism soft close function
  • Lever disconnect allows easy removal of entire drawer system
  • Slides can be installed in either panel (frameless) or face frame cabinets
  • Includes a limited 90 day manufacturer warranty
  • Full left/right pair including screws

Product Technologies:

  • Soft Close: Whether large or small, heavy or light, soft closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.

Specifications:

  • Recommended Drawer Length: 22-1/2"
  • Slide Length: 22"
  • Extension Type: Full Extension
  • Slide Type: Ball Bearing
  • Weight Capacity: 100 lbs
  • Material: Steel
  • Cabinet Type: Face Frame, Panel
  • Quantity: 2

Specifications

Key Specifications

  • Extension
    22 in.
  • Slide Type
    Ball Bearing

Manufacturer Resources

Specification Sheet

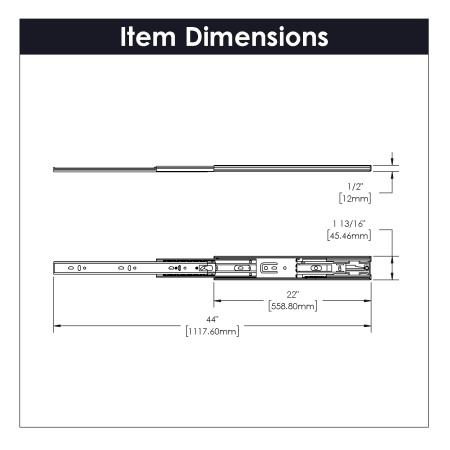

Dimensions and Measurements

Drawer Length
22.5 in.
Extension
22 in.
Length
22 in.
Max Capacity (Pounds)
100 lbs.
Nominal Length
22 in.
Product Weight
4.05 lbs.
Quantity
2

Dimensions and Measurements

Drawer Length
22.5 in.
Extension
22 in.
Length
22 in.
Max Capacity (Pounds)
100 lbs.
Nominal Length
22 in.
Product Weight
4.05 lbs.
Quantity
2

Included Components

Installation Hardware Included
Yes

Included Components

Installation Hardware Included
Yes

Characteristics and Features

Adjustable
No
Cabinet Type
Face Frame, Panel (Frameless)
Detent
No
Disconnect Style
Lever
Extension Type
Full Extension
Installation Type
Side Mount
Material
Steel
Push to Open
No
Self Closing
No
Slide Type
Ball Bearing
Soft Close
Yes

Characteristics and Features

Adjustable
No
Cabinet Type
Face Frame, Panel (Frameless)
Detent
No
Disconnect Style
Lever
Extension Type
Full Extension
Installation Type
Side Mount
Material
Steel
Push to Open
No
Self Closing
No
Slide Type
Ball Bearing
Soft Close
Yes

Warranty and Product Information

Approved for Commercial Use
No
Collection
Soft Close
Manufacturer Warranty
Limited Lifetime
Series
1055

Warranty and Product Information

Approved for Commercial Use
No
Collection
Soft Close
Manufacturer Warranty
Limited Lifetime
Series
1055
