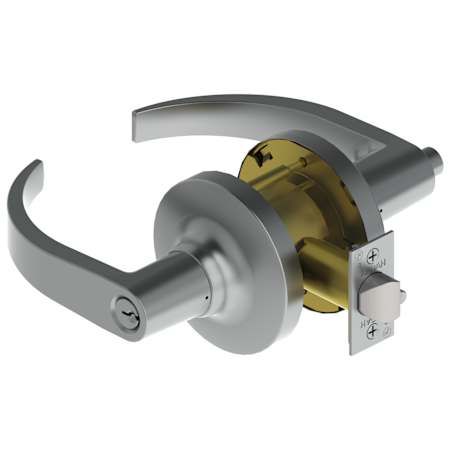

Hager August Heavy Duty Grade 1 Corridor Door Lever Set from the 3400 Series

Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.

Features:

• Tested to exceed ANSI/BHMA Grade 1 security requirements
• Constructed of high quality brass, stainless steel, and zinc for durability and dependability
• Installs easily with all necessary mounting hardware included
• Levers move bi-directionally and independently, without sag
• 3 hour fire rating, UL listed for compatible doors
• Key in outside lever locks or unlocks outside lever
• Operating inside lever or closing door releases push button
• Inside lever always operates latchbolt
• Covered by Hager's limited lifetime manufacturer warranty
• ADA compliant
• Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Specifications:

• Backset: 2-3/4" or 2-3/8"
• Bore Hole: 2-1/8"
• Edge Bore: 1"
• Door Thickness: 1-3/8" to 2"
• Handing: Reversible Left or Right
• Handle Length: 4-15/16"
• Handle Projection: 3"
• Trim Width: 3-9/16"
• Trim Height: 3-9/16"
• Product Weight: 3 lbs.
• Latch Faceplate: Round Corner or Square Corner
• Cylinder: 5 Pin C
