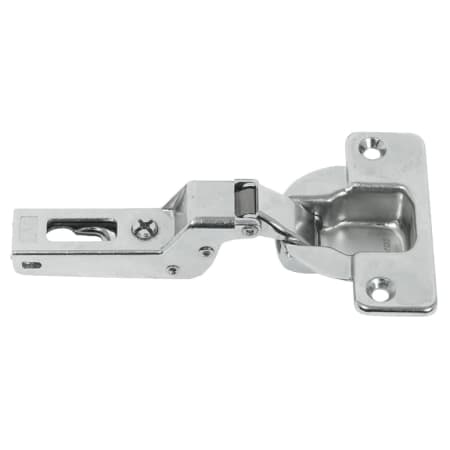

Hafele XL 1/4 Inch Overlay Screw-On Concealed European Cabinet Door Hinge with 94 Degree Opening Angle and Self Close Function- Accessory Pack

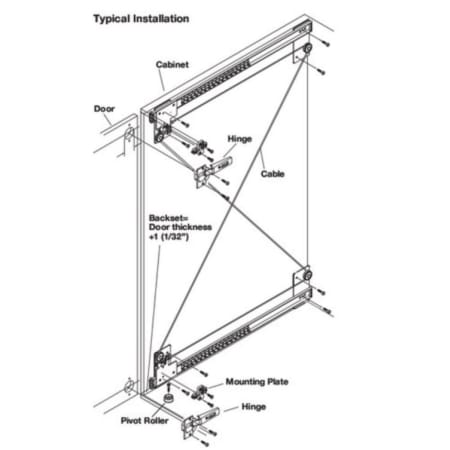

This pack is designed for use with the Hafele Pocket Door System XL

Accessory Pack includes:

• 2 self-closing 40mm cup hinges
• 2 clip mounting plates, with single screw adjustment
• 4 hinge plate mounting screws
• 4 hinge mounting screws
• 2 pivot rollers
• 2 pivot roller mounting screws
• 10 slide mounting screws

Hinge Features:

• Nickel plated for corrosion resistance and a long-lasting finish
• Constructed of steel for sturdiness and durability
• Installation hardware mounts the hinges on the sliding pocket door system
• Includes a self-close feature

Hinge Technologies:

• Material - Steel: Steel is cheap, strong and durable, making it a favorite for hinges of all types. Though it is more prone to rusting than solid brass or stainless steel.
• Mounting Type - Screw-On: The most common and standard method to secure hinges to your cabinetry. Typically using wood screws to attach the hinges to either your cabinet frame or cabinet door.
• 1/4 Inch Overlay: A 1/4" overlay hinge is needed when the cabinet door you are mounting covers 1/4" of the cabinet wall. 1/4" overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.

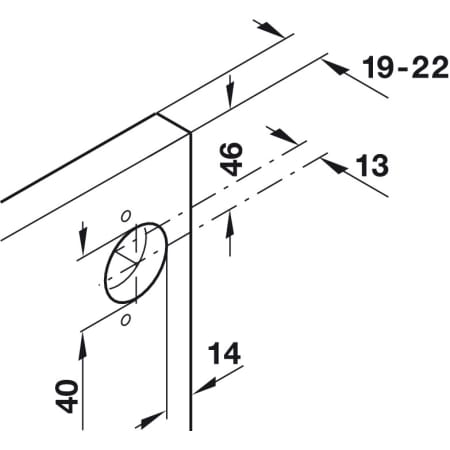

Hinge Specifications:

• Cup Diameter:1-9/16" (40mm)
• Cup Depth: 1/2" (13mm)
• Mount Centers: 52mm
• Hinge Mount: Partial Overlay
• Overlay: 1/4 Inch
• Opening Angle (degrees): 94
• Max Cabinet Door Thickness: 7/8" (22mm)
• Material: Steel
• Installation Type: Screw
