Hafele Salice Variable Overlay Concealed European Cabinet Door Hinge with 105 Degree Opening Angle and Push to Open - Pair

Features:

• Includes two hinges with each order
• All metal construction ensures long-lasting durability
• Push to Open technology allows easy access to cabinets without the use of knobs or pulls
• All necessary mounting hardware is included
• 3-way adjustable for easy installation

Product Technologies:

• Overlay: An overlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.

Specifications:

• Bore Distance: 3 mm, 4 mm, 5 mm, 6 mm

• Cup Depth: 5/8" (16.5 mm)
• Hinge Mount: Variable Overlay

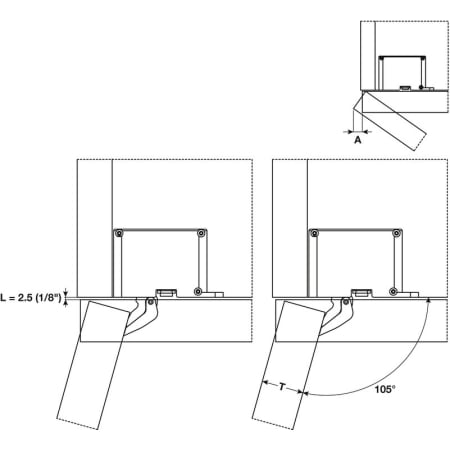

• Opening Angle: 105°
• Weight Capacity: 44 lbs.
• Height Adjustment: +/- 1/16"
• Depth Adjustment: + 1/16, - 3/16"
• Side Adjustment: +/- 1/16"
• Material: Zinc
• Mount Type: Screw-In
