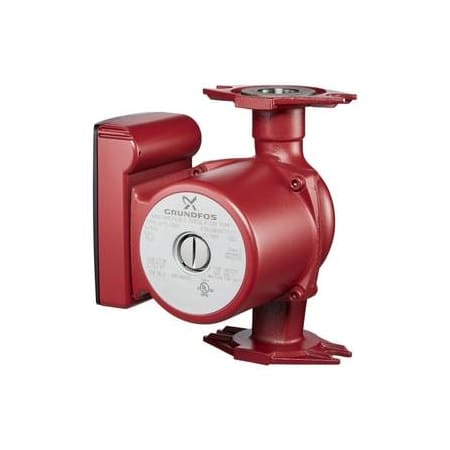

Grundfos UPS 15-18 BUC5 Bronze 3-Speed 115V 15.5GPM Canned Rotor Hot Water Recirculation Pump - 150.8 Degrees Max

Grundfos UP B circulator pumps have a bronze pump housing for drinking water applications. Recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

Features:

• Ceramic shaft and radial bearings.
• Carbon axial Bearing.
• Stainless steel rotor can and bearing plate.
• Corrosion-resistant impeller, Composite, PES.
• Bronze Pump housing.
• The motor is a 1-phase motor.
• No additional motor protection is required.

Specifications:

• Approvals on nameplate: UL, CSA
• Flow Rate (gallons per minute): 14.5 gpm
• Voltage: 115V

Material:

• Pump housing: Bronze
• DIN W.-Nr. 2.1176.01
• Impeller: Composite, PES

Electrical Data:

• Maximum ambient temperature: 104 Degrees F
• Ambient max at 176 Degrees F liquid: 176 Degrees F
• Maximum operating pressure: 145 PSI
• Flange standard: USA Sweat
• Type of connection: Bronze Sweat
• Pipe connection: .5" Sweat
• Pressure stage: 10
• Port-to-port length: 6.5"

Installation:

• Number of poles: 2
• Max. power input: 60 W
• Rated power - P2: 0.04 HP
• Main frequency: 60 Hz
• Rated voltage: 1 x 115 V
• Current in speed 3: 0.55 A
• Capacitor size - run: 10° F/180 V
• Insulation class (IEC 85): F
