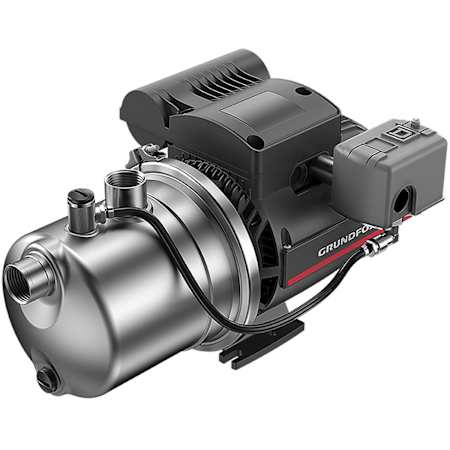

Grundfos 22 GPM 1 HP Stainless Steel Shallow Well Jet Pump (81' Rated Head) 115/230V
Model: 99463941|Item: bci5172075
Details
Product Information:
- Grundfos JP 22-10-157 -1 HP Stainless Steel Shallow Well Jet Pump (115/230V)
- Ideal for use in pumping at depths of 25' or less
- Rated 22 GPM @ 81' Head Lift; 189' Max Head Lift
- 115/230-Volt 1 HP Grundfos TEFC Motor
- Dual-voltage design allows for easy installation
- Built-in thermal overload for motor protection
- Includes Factory Pre-Wired 30/50 Pressure Switch: Allows for easy integration to your current plumbing system
- Stainless Steel Pump Housing: Provides increased corrosion-resistance compared to thermoplastic pumps
- Composite Impeller: Engineered for increased output, efficiency and quieter operation
- Ceramic-Carbon Mechanical Seal: Provides extended seal life in clear water applications
- Convenient Priming Plug: Self-priming design requires initial water-fill
- Built-In Ejector Clean-Out Ports: Makes it easy to keep this nozzle unclogged and debris free
- 2-Year Limited Warranty
Dimensions and Measurements
Flow Rate (GPM) | 22 |
Height | 8.74 in. |
Inlet Diameter | 1 in. |
Length | 16.9 in. |
Outlet Diameter | 1 in. |
Product Weight | 31.1 lbs. |
Width | 11.3 in. |
Dimensions and Measurements
Flow Rate (GPM) | 22 |
Height | 8.74 in. |
Inlet Diameter | 1 in. |
Length | 16.9 in. |
Outlet Diameter | 1 in. |
Product Weight | 31.1 lbs. |
Width | 11.3 in. |
Characteristics and Features
Configuration | Shallow Well |
Impeller Material | Composite |
Mechanical Seal Material | Ceramic Carbon |
Submersible | No |
Characteristics and Features
Configuration | Shallow Well |
Impeller Material | Composite |
Mechanical Seal Material | Ceramic Carbon |
Submersible | No |
Electrical and Operational Information
Horsepower | 1 |
Maximum Operating Pressure (PSI) | 87 |
Self Priming | Yes |
Suction Head | 25 ft. |
Voltage | 115, 230 |
Electrical and Operational Information
Horsepower | 1 |
Maximum Operating Pressure (PSI) | 87 |
Self Priming | Yes |
Suction Head | 25 ft. |
Voltage | 115, 230 |
Warranty and Product Information
Manufacturer Warranty | 2 Year |
Series | JP |
Warranty and Product Information
Manufacturer Warranty | 2 Year |
Series | JP |
