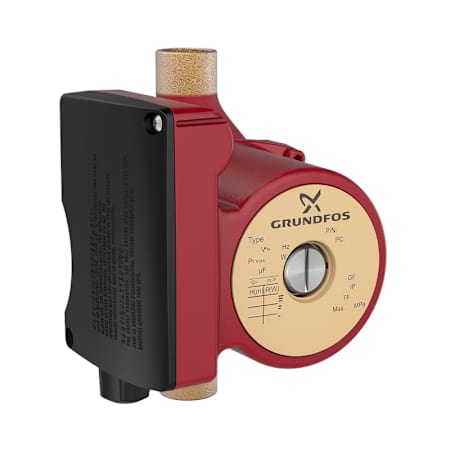

Grundfos UP15-18 B5/TLC Residential 1/25 HP 115V 4.9 GPM Bronze Hot Water Recirculation Pump

Grundfos UP B circulator pumps have a bronze pump housing for drinking water applications. Variants are recommended for underfloor heating systems as the pumped liquid may often become aerated, causing corrosion in cast iron pump housings. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

Features:

• Ceramic shaft and radial bearings
• Carbon axial bearing
• Stainless steel rotor and bearing plate
• Housing pump is bronze

Specifications:

• Maximum Operating Pressure PSI: 145.04 psi
• Flow Rate (gallons per minute): 4.93 GPM
• Voltage: 115V
• Pump Housing: Bronze
• Number of Poles: 2
• Connection Type 1/2" INT Sweat / Bronze sweat
• Thermal Protection: Impedance protected
• Maximum Wattage Input: 80W
