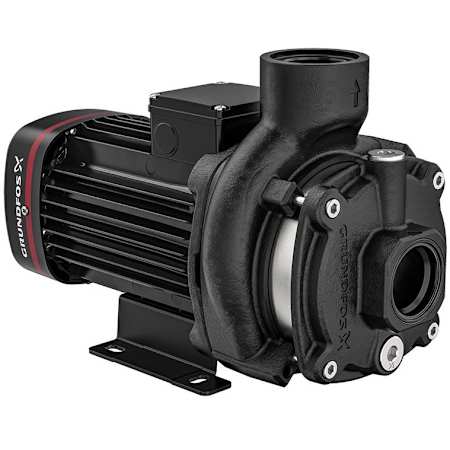

Grundfos CM 1HP 8.9 GPM Cast Iron Compact Horizontal End Suction Centrifugal Pump

CM 1-5 A-S-A-V-AQQV E-A-A-N

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The shaft, impellers and chambers are made of stainless steel. The inlet and discharge parts are made of cast iron. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal NPT pipe threads. The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.

Features:

• Horizontal end suction centrifugal pump
• Axial suction port and radial discharge port
• Shaft, impellers, and chambers are stainless steel
• Pipe connections are internal NPT
• Foot mounted, 3 phase, fan cooled asynchronous motor

Specifications:

• Temperature Range: -3&defF to 194&defF
• Maximum PSI: 145.04 psi
• Suction Port Size: 1"
• Discharge Port Size: 1"
• Pump Speed: 3480 RPM
• Flow Rate (gallons per minute): 8.98 gpm
• Drinking Water Approvals: CE,CULUS,EAC,CURUS,UKCA
• Suitable for 50/60 hz: No
• Voltage: 3x22-230-YY / 440-480Y V
• Pump Housing: Cast Iron
• Impeller: Stainless Steel
