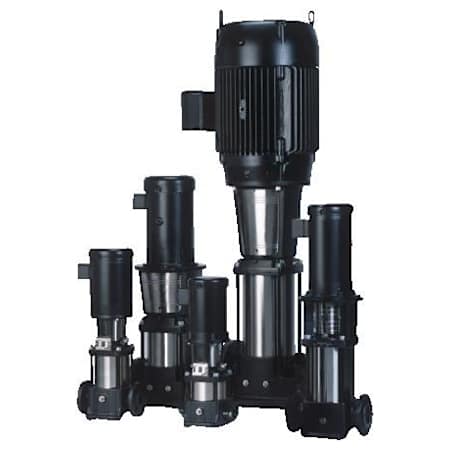

Grundfos CR 102 ABNAE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Maximum Temperature of 248°F, a Rated Flow of 53.3 US GPM, a Rated Head of 72.5 Ft and Cast Iron Construction

CR 102 ABNAE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Maximum Temperature of 248°F, a Rated Flow of 53.3 US GPM, a Rated Head of 72.5 Ft and Cast Iron Construction

CR 102 ABNAE HQQE Vertical, non-self priming, multistage, inline, centrifugal pump for installation in pipe systems and mounting on a foundation. The pump has the following characteristics: Impellers and intermediate chambers are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4301. Pump head and base are made of Cast iron. The shaft seal has assembly length according to DIN 24960. Power transmission is via cast iron split coupling. Pipe work connection is via OVAL flanges. The motor is a 3 phase AC motor.

Technical:

• Speed for pump data: 3466 rpm
• Rated flow: 53.3 US gpm
• Rated head: 72.5 ft
• Shaft seal: HQQE
• Approvals on nameplate: ANSI/NSF61

Material:

• Pump housing: Cast iron
• Pump housing: EN-JL1030
• Pump housing: ASTM A48-30 B
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Maximum ambient temperature: 104 °F
• Max pressure at stated temperature: 145 psi / 250 °F
• Max pressure at stated temperature: 145 / -4 psi/°F
• Flange standard: OVAL
• Pipe connection: 2" NPT
• Flange size for motor: 56C

Liquid:

• Liquid temperature range: -4 .. 248 °F

Electrical Data:

• Motor type: 80BA
• Efficiency class: NEMA premium
• Number of poles: 2
• Rated power - P2: 1.48 HP
• Main frequency: 60 Hz
• Rated voltage: 3 x 208-230/460 V
• Service factor: 1,15
• Rated current: 4,70-4,60/2,30 A
• Starting current: 720-800 %
