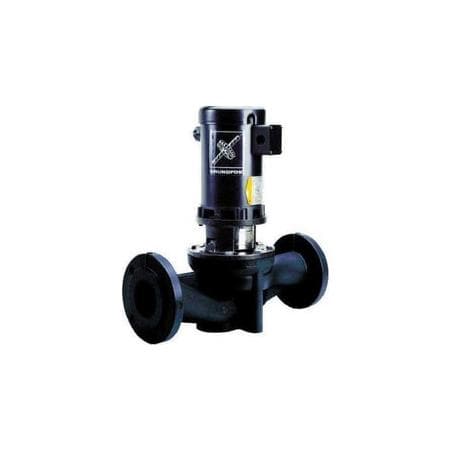

Grundfos TP 100160/2 B UGZ BUBE Single Stage Centrifugal Inline Single Head Pump with a Rated Flow of 242 US GPM, a Rated Head of 34.5 Ft and Bronze Construction

TP 100160/2 B UGZ BUBE Single Stage Centrifugal Inline Single Head Pump with a Rated Flow of 242 US GPM, a Rated Head of 34.5 Ft and Bronze Construction

TP 100160/2 B UGZ BUBE Single stage centrifugal inline single head pump. The inline design with opposite suction and dis charge ports enables mounting in pipe work or on a concrete foundation. The shaft seal is a corrosion resistant maintenance free mechanical seal. The motor is a 1 phase AC motor.

Technical:

• Speed for pump data: 3470 rpm
• Rated flow: 242 US gpm
• Rated head: 34.5 ft
• Shaft seal: BUBE
• Maximum operating pressure: 145 psi
• Approvals on motor nameplate: UL Recognized Component, CSA

Material:

• Pump housing: Bronze
• Pump housing: DIN W.-Nr. 2.1093
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Maximum ambient temperature: 104 °F
• Maximum operating pressure: 145 psi
• Flange standard: ANSI
• Pipe connection: 4"
• Pressure stage: 125 Lb.

Liquid:

• Liquid temperature range: 5 .. 284 °F

Electrical Data:

• Motor type: Baldor, TEFC
• Number of poles: 2
• Rated power - P2: 2.95 HP
• Main frequency: 60 Hz
• Rated voltage: 1 x 115/208-230 V
• Service factor: 1,15
• Rated current: 29/16-14,5 A
• Starting current: 170/93,5-85 A
• Cos phi - power factor: 88
• Rated speed: 3450 rpm
