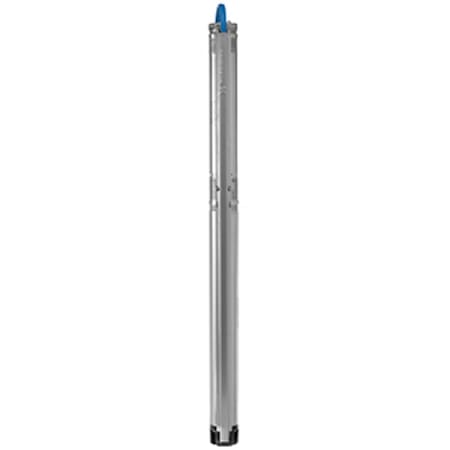

Grundfos 5 GPM 1/2 HP SQ-Series Deep Well Submersible Pump (90' Rated Head) (2W - 115V)

Product Information:

• Grundfos 5SQ05-90 - SQ Series 3" Submersible Well Pump (2W - 115V): Ideal for use with 3" I.D. or larger boreholes


• Rated 5 GPM @ 90' Head Lift: Please see documents for sizing / pump curve information


• 1/2 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 115V)
  • Highly-efficient design with thermal overload protection for added safety
  • Fitted with a replaceable cable plug for ease of use


• Soft Start Design
  • Allows for a low starting current with a smooth and steady acceleration
  • Low current draw helps reduce wear and provides ability to use smaller gauge wire


• Dry-Running Protection: Helps extend pump life by preventing pump damage due to lack of water in well


• Highly-Efficient Stainless Steel Pump: Polyamide reinforced hydraulic pump components for more efficient energy use


• "Floating" Impellers with Tungsten Carbine/Ceramic Bearings: Allows for high wear resistance to sand which extends pump life


• Top-Bearing Upthrust Protection: Provides added protection to motor/pump during start-up


• Overvoltage and Undervoltage Protection: Prevents damage to the motor if voltage moves outside rated range


• Overload Protection: Reduces Motor RPM or turns off power to motor to prevent damage to motor


• Overtemperature Protection: Built-in temperature sensor ensures optimum operating conditions for the motor


• 2-Year Warranty
