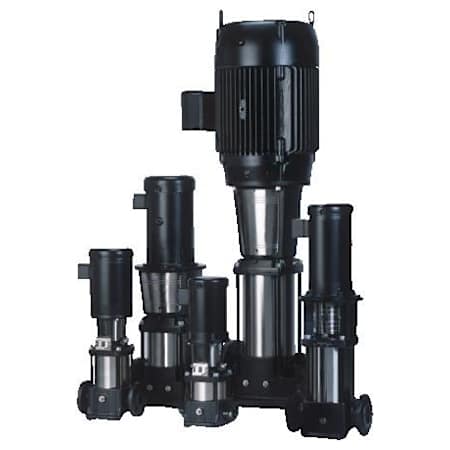

Grundfos CR 203 ABAV HQQV Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 111 US GPM, a Rated Head of 159 Ft and Cast Iron Construction

CR 203 ABAV HQQV Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 111 US GPM, a Rated Head of 159 Ft and Cast Iron Construction

CR 203 ABAV HQQV Vertical, non-self priming, multistage, inline, centrifugal pump for installation in pipe systems and mounting on a foundation. The pump has the following characteristics: Impellers and intermediate chambers are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4301. Pump head and base are made of Cast iron. The shaft seal has assembly length according to DIN 24960. Power transmission is via cast iron split coupling. Pipe work connection is via OVAL flanges.

Technical:

• Speed for pump data: 3467 rpm
• Rated flow: 111 US gpm
• Rated head: 159 ft
• Shaft seal: HQQV
• Approvals on nameplate: NEMA

Material:

• Pump housing: Cast iron
• Pump housing: EN-JL1030
• Pump housing: ASTM A48-30 B
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Max pressure at stated temperature: 145 psi / 194 °F
• Max pressure at stated temperature: 145 / -4 psi/°F
• Flange standard: OVAL
• Pipe connection: 2" NPT
• Flange size for motor: 213TC

Liquid:

• Liquid temperature range: -4 .. 194 °F
