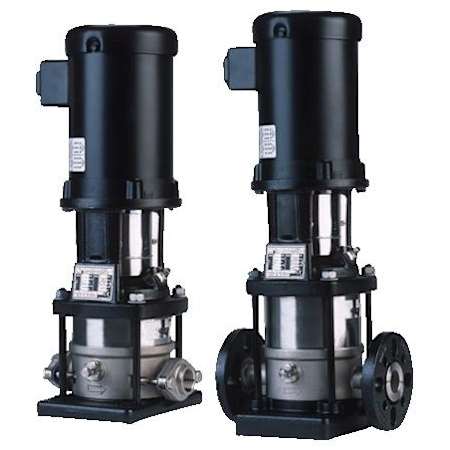

Grundfos CRI 313 ACABIXE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 15.4 US GPM, a Rated Head of 308 Ft and Stainless Steel Construction

CRI 313 ACABIXE HQQE Vertical, Non-self Priming, Multistage, Inline, Centrifugal Pump with a Rated Flow of 15.4 US GPM, a Rated Head of 308 Ft and Stainless Steel Construction

CRI 313 ACABIXE HQQE Vertical, non-self priming, multistage, inline, centrifugal pump for installation in pipe systems and mounting on a foundation. The pump has the following characteristics: Impellers, intermediate chambers and outer sleeve are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4301. Pump head cover and base are made of Stainless steel DIN W.Nr. DIN W.Nr. 1.4408. The shaft seal has assembly length according to DIN 24960. Power transmission is via cast iron split coupling. Pipe work connection is via FLEXICLAMP flanges/couplings.

Technical:

• Speed for pump data: 3461 rpm
• Rated flow: 15.4 US gpm
• Rated head: 308 ft
• Shaft seal: HQQE
• Approvals on nameplate: ANSI/NSF61

Material:

• Pump housing: Stainless steel
• Pump housing: DIN W.-Nr. 1.4408
• Pump housing: ASTM A 351 CF 8M
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Max pressure at stated temperature: 232 psi / 250 °F
• Max pressure at stated temperature: 232 / -4 psi/°F
• Flange standard: FLEXICLAMP
• Pipe connection: 2 5/16"
• Flange size for motor: 182TC

Liquid:

• Liquid temperature range: -4 .. 248 °F

Electrical Data:

• Power (P2) required by pump: 2.95 HP
