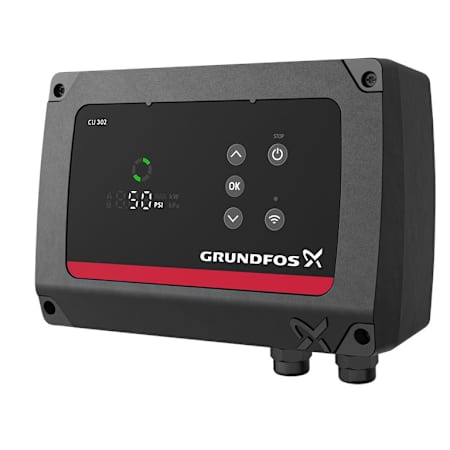

Grundfos CU 302 Bluetooth Constant Pressure Kit with PSI Sensor for SQE Submersible Pumps

The CU 302 is designed for monitoring and controlling SQE submersible pumps in residential water supply applications. The simple user interface and built-in Bluetooth module ensure easy installation and configuration. The Bluetooth connection to the Grundfos GO app offers extensive set up and monitoring options. The system is PRE-configured for constant pressure, which is the most used application, offering a plug and pump solution

Features:

• Constant pressure kit for SQE model Grundfos pumps
• Use in conjunction with the Grundfos GO app to access additional features
• Additional logs are available through the Grundfos GO app
• Warnings and alarms are visible on the display of the controller as well as the Grundfos GO app
• Power inline communication between controller and pump means that no additional cables are required
• Controller can use Wi-Fi, GENibus, or Modbus to monitor the system remotely

Controller Display

• System status indication
• Alarm and warning indication
• On / Off

Specifications:

• Range of ambient temperature: -4-122 degrees F
• Wall Mounted
• Earth connection: PE
• Frequency 50 / 60 Hz
• Rated current: 12.5A
• Back up fuse required: 16 A
• Battery chemistry: Lithium
• Cable gland entry: 2x 1/2" conduits + 2XPG11
• Approvals: CE,EAC,RCM,CULUS,UKCA
