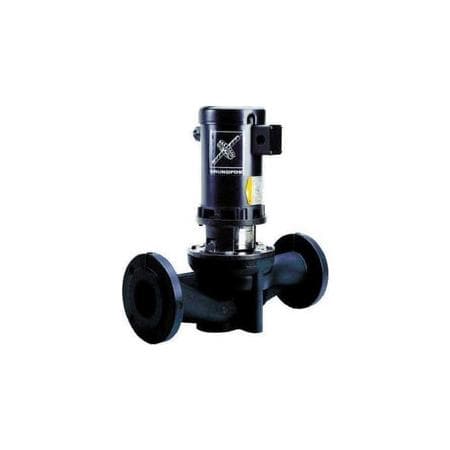

Grundfos TP 5040/4 UGZ BUBE Single Stage Centrifugal Inline Single Head Pump with a Rated Head of 10.2 Ft, a Shaft Seal of BUBE and Bronze Construction

TP 5040/4 UGZ BUBE Single Stage Centrifugal Inline Single Head Pump with a Rated Head of 10.2 Ft, a Shaft Seal of BUBE and Bronze Construction

TP 5040/4 UGZ BUBE Single stage centrifugal inline single head pump. The inline design with opposite suction and dis charge ports enables mounting in pipe work or on a concrete foundation. The shaft seal is a corrosion resistant maintenance free mechanical seal.

Technical:

• Rated flow: 70.4 US gpm
• Rated head: 10.2 ft
• Shaft seal: BUBE
• Maximum operating pressure: 145 psi

Material:

• Pump housing: Bronze
• Pump housing: DIN W.-Nr. 2.1093
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Maximum operating pressure: 145 psi
• Flange standard: USA
• Pipe connection: 2"

Liquid:

• Liquid temperature range: 5 .. 284 °F

Electrical Data:

• Number of poles: 4
• Power (P2) required by pump: 0.335 HP
