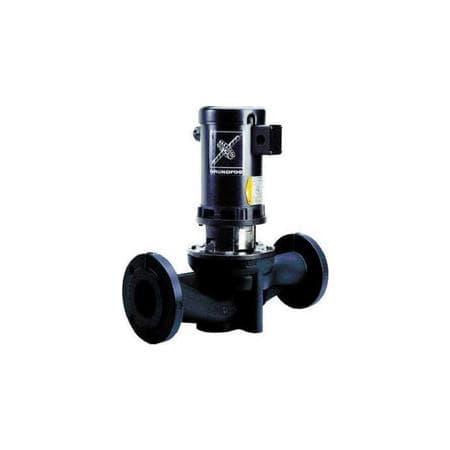

Grundfos TP 100160/2 UGA BUBE Single Stage Centrifugal Inline Single Head Pump with a Rated Head of 34.5 Ft, a Shaft Seal of BUBE and Cast Iron Construction

TP 100160/2 UGA BUBE Single Stage Centrifugal Inline Single Head Pump with a Rated Head of 34.5 Ft, a Shaft Seal of BUBE and Cast Iron Construction

TP 100160/2 UGA BUBE Single stage centrifugal inline single head pump. The inline design with opposite suction and dis charge ports enables mounting in pipe work or on a concrete foundation. The shaft seal is a corrosion resistant maintenance free mechanical seal.

Technical:

• Rated flow: 242 US gpm
• Rated head: 34.5 ft
• Shaft seal: BUBE
• Maximum operating pressure: 145 psi

Material:

• Pump housing: Cast iron
• Pump housing: EN-JL1040
• Pump housing: ASTM 25 B
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Maximum operating pressure: 145 psi
• Flange standard: ANSI
• Pipe connection: 4"
• Pressure stage: 125 Lb.

Liquid:

• Liquid temperature range: 5 .. 284 °F

Electrical Data:

• Number of poles: 2
• Power (P2) required by pump: 2.95 HP
