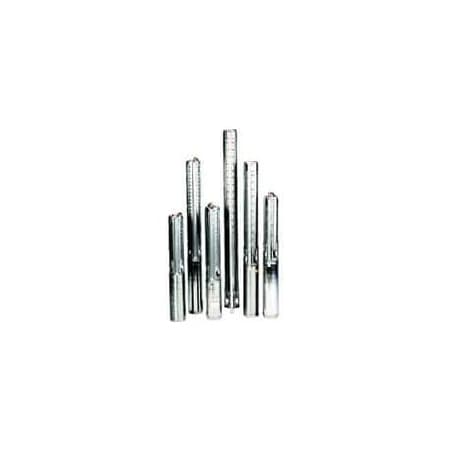

Grundfos 16S055 Multistage Submersible Pump with a Rated Flow of 17.6 US GPM, a Rated Head of 102 Ft and Stainless Steel Construction

16S055 Multistage Submersible Pump with a Rated Flow of 17.6 US GPM, a Rated Head of 102 Ft and Stainless Steel Construction

16S055 Multistage submersible pump for raw water supply, groundwater lowering and pressure boosting. The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibers. The pump is made entirely of Stainless steel DIN W.Nr. DIN W.Nr. 1.4301 and suitable for horizontal and vertical installation. The pump is fitted with a built-in non-return valve.

Technical:

• Speed for pump data: 3450 rpm
• Rated flow: 17.6 US gpm
• Rated head: 102 ft

Material:

• Pump: Stainless steel
• Pump: DIN W.-Nr. 1.4301
• Pump: AISI 304
• Impeller: Stainless steel
• Impeller: DIN W.-Nr. 1.4301
• Impeller: AISI 304

Installation:

• Pump outlet: 1 1/4" NPT
• Motor diameter: 4 inch

Liquid:

• Maximum liquid temperature: 104 °F

Electrical Data:

• Power (P2) required by pump: 0.738 HP
• Start. method: direct-on-line
