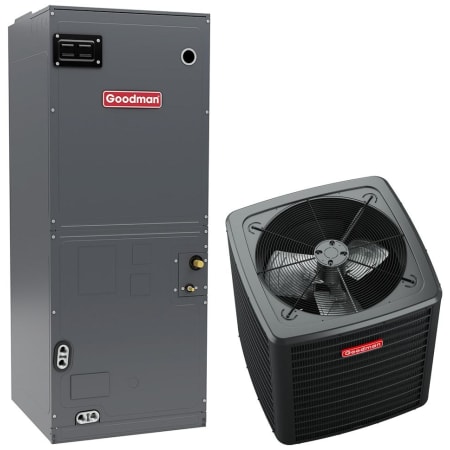

Goodman 2.0 Ton Cooling 15.2 SEER2 Central Air Conditioner System with Single-Stage Heat Pump and 1,215 CFM Air Handler

A Goodman central air package is the perfect way to upgrade your home's HVAC system. The GLZS4BA2410 AMST24BU1300 features a GLZS4BA2410 heat pump to provide both heating and cooling for your entire home. Goodman heat pumps feature aluminum fins with increased surface area, designed to maximize efficiency. When paired with a multi-speed air handler, specifically picked to optimize the heat pump with multiple air speed settings, this system provides efficient, economic comfort year-round.

Product Information:

Internal Thermostatic Expansion Valve
• The AMST has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
Efficient Circulation
• The direct-drive, multi-speed blower motor allows air volume variation for heating and cooling ensuring efficient circulation.
All-Aluminum Evaporator Coil
• Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
SmartFrame™
• This air handler features a rigid SmartFrame™ sub-structure for enhanced accessibility. It provides toolless access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
Condensate Management
• The AMST includes a DecaBDE-free thermoplastic drain pan with secondary drain connections, these elements help prevent the formation of condensation and keep your system running smoothly.
Energy-Efficient Compressor
• This unit utilizes an energy-efficient compressor to provide refrigerant flow.
Smartshift™ Technology
• This unit offers a time-delay defrost that allows for a reliable, quiet and smooth transition when units enter defrost mode.
Copper Tube/Enhanced Aluminum Fin Coil
• The condenser coil of this air conditioner is designed with aluminum fins and copper tubing to maximize efficiency. The fins serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
Factory-Installed Suction-Line Accumulator
• An accumulator prevents compressor damage from a sudden surge of liquid refrigerant and oil that could enter the compressor from the suction line.
Factory-Installed Compressor Crankcase Heater
• A crankcase heater is a supplemental electric resistance heater that prevents refrigerant migration by holding oil in the crankcase at a higher temperature than the coldest part on the system.
Factory-Installed High-Capacity Muffler
• A muffler reduces noise and high-frequency vibrations that can easily be transmitted through the tubing and into the house.
High And Low-Pressure Switches
• A pressure switch will suspend heat pump operations if it detects an unsafe pressure level.
Secure Cabinet
• The removable grille-style top design is UL 60335-2-40 compliant.
Heavy-Gauge Galvanized-Steel Cabinet
• This cabinet is built to last. Galvanized steel construction, a durable and attractive architectural gray powder-paint finish with 500-hour salt-spray approval, and a steel louver coil guard that protects your equipment from wear and tear.
Extended Warranty
• Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

Component Specifications:

GLZS4BA2410

General Information:

• Type: Single-Stage Heat Pump
• Operating Mode: Heating and Cooling
• Installation Location: Outdoor
• Refrigerant Type: R-32
• DOE Regional Compliance: Nationwide

Performance:

• Cooling Capacity (Tons): 2.0 Ton
• Cooling BTU: 24,000
• Cooling BTU Capacity: 24,000
• Maximum Sound Level: 74 dB
• SEER2: 15.2
• HSPF: 7.8

Electrical Data:

• Voltage: 208, 230V
• Electrical Phases: 1
• Frequency: 60 Hz
• Amperage: 11.2A
• Recommended Breaker Size: 15A

Dimensions:

• Suction Line Diameter: 3/4"
• Liquid Line Connection Size: 3/8" Inch
• Height: 32-1/2"
• Width: 29"
• Depth: 29"
• Product Weight: 150 lbs
• Shipping Weight: 165 lbs

Product Assurance:

• Certifications:
  • AHRI
  • ETL
  • ISO
• Warranty: 10 Year Limited Parts

AMST24BU1300

Specifications:

• Refrigerant Type: R-32
• Motor Type: Electronically Commutated Motor (ECM)
• Capacity: 2.0 Ton
• Cooling BTU: 24,000
• Voltage: 208, 230V
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 15 Amps
• Suction Line Size: 3/4"
• Liquid Connection Size: 3/8"
• Height: 45"
• Width: 17-1/2"
• Depth: 21"
• Product Weight: 97 lbs
• Shipping Weight: 112 lbs
• Certifications:
  • AHRI
  • ETL
  • ISO
• Warranty: 10 Year Limited Parts
