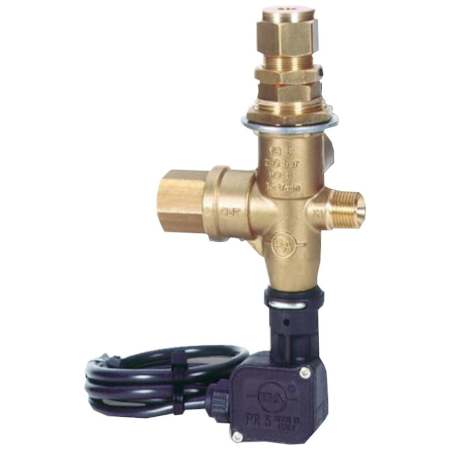

General Pump General Pump 3/8" NPT 3650 PSI 8 GPM Trapped Pressure Panel Mount Washer Pump Unloader Valve w/ 5 Amp Microswitch

Product Information:

• New Improved Unloader Replacement Valve
  • Makes for easier gun operation and reduced pressure loss
  • Incorporate adjustable pressure into your pressure washer pump
  • Easy start-up due to low re-arm pressure (27% of operating pressure)


• High-Quality Construction: Extremely durable stainless steel and brass


• Hexagonal discharge check valve to prevent binding
  • Unloader With Microswitch
  • Waterproof IP 55, UL Listed
  • Max rated voltage - 250 Volt & Room Temperature 165 Degrees
  • Breaking Switch - 6 Amp Resistive Load / 2 Amp Inductive Load
  • Electrical Wire - 3 Wire / 19 Gauge & Length of Cable - 40 Inches


• Universal Set-Up
  • (1) 3/8" NPT-M Inlet, 3/8" NPT-F Outlet, (1) 3/8" NPT-F Bypass & (1) 1/4" NPT-F Gauge
  • Fits many popular pumps; rated to 3200 PSI (3650 Max PSI), 8 GPM, 195°F
  • ***Does Not Include Regulating Knob***



Specifications:

• Grade: Medium
• Fuel Type: Gas
• CARB Approved
• Warranty: 90 Day Commercial and 90 Day Consumer

Dimensions:

• Height: 2-5/16"
• Width: 5"
• Length: 10"
• Product Weight: 2 lbs
• Outflow Connection: 3/8" Threaded (Female)
