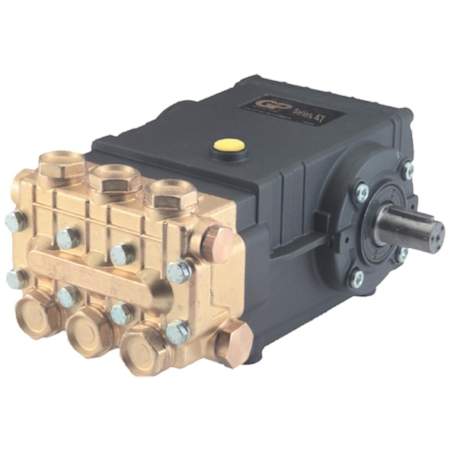

General Pump General Pump 47 Series 3500 PSI 4.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive / Right Hand)

Product Information:

• High Quality Replacement For Worn Out Pumps: The preferred pump frame in the pressure cleaning industry


• Triplex Plunger Pump With Heavy Duty Tapered Roller Bearing
  • Solid ceramic plungers run cooler
  • Continuously lubricated packings last longer


• Durable Components
  • Forged brass manifold lasts longer than cheaper models
  • Over-sized connecting rods for maximum life
  • Large-capacity, die-cast, anodized aluminum oil-bath crankcase
  • Unitized stainless steel inlet and discharge valves


• 24 MM Solid Shaft (.945 inches) Handles 1125 RPM
  • Inlet port thread 1/2-14 BSPP-F
  • Discharge port thread 3/8-19 BSPP-F
  • Plunger bore .787 in. / 20 mm, plunger stroke .630 in / 16mm
  • Crankcase oil capacity 40.6 ounces


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • Nickle plated for durability
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately


• Please Call Us For Sizing Assistance w/ Information Below:
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Fuel Type: Gas
• CARB Approved
• Warranty: 5 Year Commercial and 5 Year Consumer

Dimensions:

• Height: 6-7/8"
• Width: 9-3/16"
• Length: 12-5/8"
• Product Weight: 32 lbs
