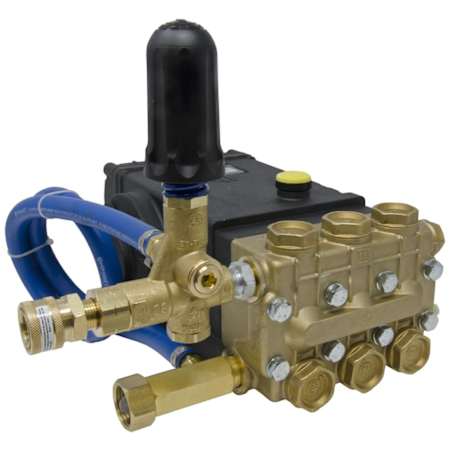

General Pump General Pump Fully Plumbed Made Ready 3500 PSI 4.0 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Product Information:

• No-Hassle Replacement Pump
  • Fully Plumbed are ready to go - 4 bolts off - 4 bolts on
  • Get a great quality replacement assembly for less than a repair


• Belt Drive 4000 PSI & 4 GPM Pumps; 1450 RPM
  • Designed for suction applications
  • Unitized stainless steel inlet and discharge valves
  • Solid ceramic plungers w/ continuously lubricated packings


• EZ Unloader
  • Adjust the pressure to suit the task at hand
  • Eliminates back pressure when pulling a manual start engine


• External Bypass Hose
  • Carries water to the inlet when the unloader valve opens
  • Adds safety if water circulates in pump for too long and quickly heats to dangerous temperatures


• Fits Many Different Brands Of Belt Drive Pressure Washer
  • Inlet port thread 1/2-14 BSP-F; discharge port thread 1/2-14 BSP-F
  • .945 inch / 24 mm shaft diameter; 165° F max water temperature


• High-Quality Components
  • Heavy-duty tapered roller bearing
  • Manifold with fine thread valve caps
  • Forged brass manifold with an exclusive lifetime warranty


• Large Capacity Crankcase
  • Hold an impressive 37.2 oz
  • Die-cast, anodized aluminum oil-bath


• Be Sure To Measure The Shaft & Flange Bolt Holes Accurately!
  • There is a 25% restock fee for returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions


• Please Call Us For Sizing Assistance w/ Information Below:
  • There is a 25% restock fee on returned pumps
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• CARB Approved
• Warranty: 5 Year Consumer

Dimensions:

• Height: 12"
• Width: 12-3/16"
• Length: 14"
• Product Weight: 37 lbs
