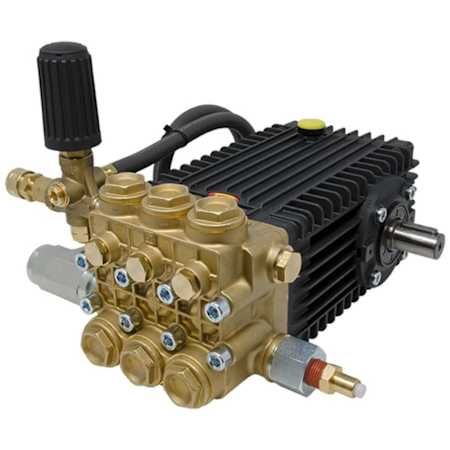

General Pump General Pump Fully Plumbed Made Ready 3600 PSI 8.5 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Product Information:

• Direct Drive Fully Plumbed Replacement Pump
  • Fully Plumbed and ready to go - 4 bolts off - 4 bolts on
  • Comes with unloader, pressure relief valve, pressure washer hose plug, and garden hose inlet w/ filter


• 24 MM Solid Shaft
  • Provides a smooth liquid flow at 1750 RPM
  • 15 oz. crankcase with one-piece plunger design eliminates water entering crankcase


• Offers Maximum 3600 PSI & 8.5 GPM
  • Heavy-duty advanced forged brass manifold
  • Solid ceramic plungers with dust protection chamber
  • Rated for a maximum 125 PSI and 165-degree temperature


• Pulsar EZ Unloader
  • Adjust the pressure to suit the task at hand
  • Eliminates back pressure when pulling a manual start engine


• External Bypass Hose
  • Carries water to the inlet when the unloader valve opens
  • Adds safety if water circulates in pump for too long and quickly heats to dangerous temperatures


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restock fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pumps should not be allowed to operate in bypass mode for more than 1 minute


• Please Call Us For Sizing Assistance w/ Information Below:
  • Pumps should not be allowed to operate in bypass mode for more than 1 minute
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Fuel Type: Gas
• CARB Approved
• Warranty: 5 Year Commercial and 5 Year Consumer

Dimensions:

• Product Weight: 40.7 lbs
• Outflow Connection: 3/8" Snap Coupler (Female)
