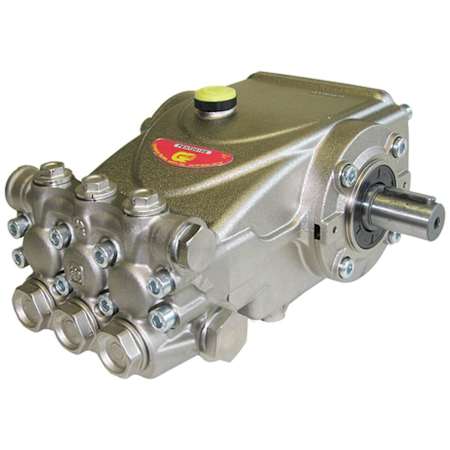

General Pump General Pump Platinum Emperor Series 3000 PSI 4.0 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Product Information:

• High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Designed for use in applications where the water must be pre-heated, such as in carwash, food and pharmaceutical industries


• Triplex Plunger Pump w/ High Tech Packings
  • Solid ceramic plungers run cooler
  • Superior low-pressure & high pressure seal
  • Specifically designed to handle rigorous duty cycles, high temperatures and chemicals


• Durable Components & Heavy Duty Tapered Roller Bearings
  • Nickel-plated forged manifold lasts longer than cheaper models
  • Patent-pending inlet/outlet valve cage


• 24 MM Solid Shaft (.945 inches) Handles 950 RPM
  • Inlet port thread 1/2" - 14 BSP-F
  • Discharge port thread 3/8" - 19 BSP-F
  • Plunger bore .866 in / 22 mm, plunger stroke .551 in. / 14 mm
  • Crankcase oil capacity 22 ounces
  • Maximum fluid temperature 185 F; Max 125 PSI


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately
  • This is a bare pump; you will need to re-use your current fittings or purchase new ones (sold separately)


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Fuel Type: Gas
• CARB Approved
• Warranty: 5 Year Commercial and 5 Year Consumer

Dimensions:

• Height: 5-3/8"
• Width: 8-13/16"
• Length: 10-3/8"
• Product Weight: 21 lbs
