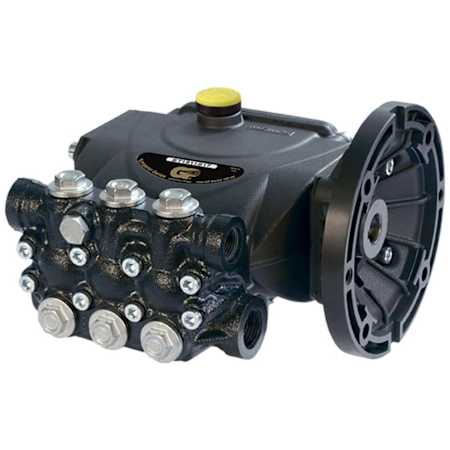

General Pump General Pump ET Series 2610 PSI 1.85 GPM (Shaft Electric Flange) Triplex Pressure Washer Pump

Product Information:

• Quality Replacement For Worn Out Pumps
  • These pumps are 100% Made in Italy

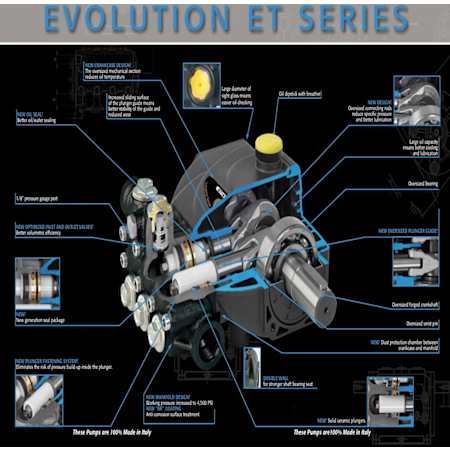

  • "HR" anti-corrosion surface treatment on manifold


• New Pump Design: Oversized connecting rods reduce specific pressure & improve lubrication


• Solid Ceramic Plungers With Dual Guide System
  • Ceramic runs cooler & lasts longer; can be rebuilt
  • New plunger guide assembly reduces friction, extends seal life (patent pending)


• Durable Components
  • Oversized forged crankshaft & crankshaft key increase performance
  • Optimized outlet valves deliver better volumetric efficiency


• Large Diameter Sight Glass
  • Easier oil checking; dipstick with breather for easier maintenance
  • 8.5 oz. oil capacity means better cooling & lubrication


• NEMA56C Electric Motor Mounting Flange w/ 5/8" Hollow Shaft Diameter
  • Inlet Port Thread 1/2"-14 BSP-F / Discharge Port 3/8"-19 BSP-F
  • Plunger stroke 157 in. (4 mm) / Plunger bore 591 in. (15 mm)
  • Max 2610 PSI, 1.85 GPM, up to 165°F


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps

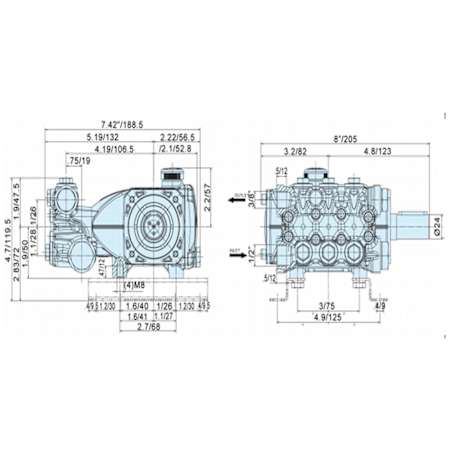

  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• CARB Approved
• Warranty: 5 Year Commercial and 5 Year Consumer

Dimensions:

• Height: 5-1/2"
• Width: 7-3/8"
• Length: 7-5/16"
• Product Weight: 11 lbs
• Outflow Connection: 3/8" Threaded (Female)
