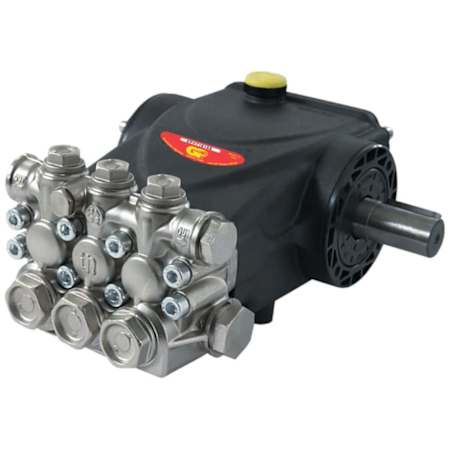

General Pump General Pump Emperor Series 2465 PSI 3.4 GPM (Solid Shaft) Triplex Pressure Washer Pump (Belt Drive)

Product Information:

• High Quality Replacement For Worn Out Pumps
  • The preferred pump frame in the pressure cleaning industry
  • Ideal for use in carpet cleaning and other high pressure cleaning applications


• Triplex Plunger Pump w/ High Tech Packings
  • Superior low-pressure and high pressure seal
  • Solid ceramic plungers with dual guide system run cooler
  • Specifically designed to handle rigorous duty cycles, high temperatures & chemicals


• Durable Components
  • Optimized nickel-plated inlet/outlet valve plugs
  • Nickel-plated forged brass manifold lasts longer than cheaper models


• 24 MM Solid Shaft (.945 inches) Handles 1450 RPM
  • Inlet port thread 1/2" -14 BSP-F
  • Discharge port thread 3/8"-19 BSP-F
  • Plunger bore .708 in / 18 mm, plunger stroke .472 in / 12 mm
  • Crankcase oil capacity 14.0 ounces; Dual lip oil seal
  • Rated PSI 125 and max temperature 185° F


• Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Pump ships bare so you'll need to re-use your connectors & siphon tube or purchase them separately


• Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)


• ***Shaft Size Measurements Must Be Precise***

Specifications:

• Fuel Type: Gas
• CARB Approved
• Warranty: 5 Year Commercial and 5 Year Consumer

Dimensions:

• Height: 5-1/8"
• Width: 8-3/8"
• Length: 9-1/2"
• Product Weight: 18 lbs
