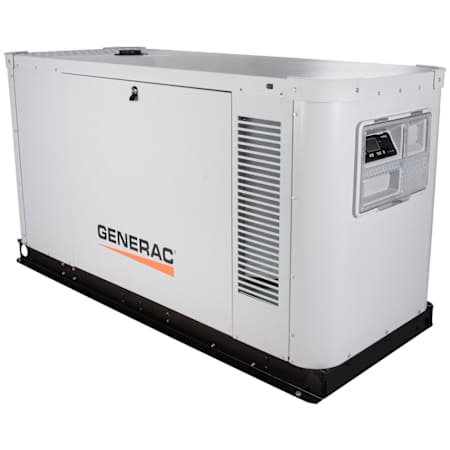

Generac Protector XG Series 40kW (120 / 208V) Three-Phase Liquid Cooled Multi-Fuel Standby Generator with Cellular Mobile Link (Configurable) (48-State)

NOTE - Configurable 3-Phase Voltage Output. Includes 120/208V 3-Phase Voltage Configuration Cartridge (VCC)

Please Note - Requires Loading Dock or Forklift For Delivery

Features:

40kW ProtectorXG Series Premium-Grade Standby Generator

Non-SCAQMD Compliant - Not For Sale In CALIFORNIA

• For small commercial buildings with 3-Phase service

Configurable 3-Phase Voltage Output*

• Includes 120/208V 3-Phase Voltage Configuration Cartridge (VCC)

• All Voltages Require Generator CB Kit (Sold Separately)

Runs Off Natural Gas or LP Fuel Source

• Now controller is selectable for easier installation

Mobile Link and Fleet Standard Cellular Connectivity

• Monitor generator status on a smart phone, tablet or PC

5-Year Limited Warranty + 24/7-365 Customer Support

• Have your questions answered when it's convenient for you

True Power Electrical Technology

• Less than 5% Total Harmonic Distortion (THD) for utility grade power

Automatic Digital Voltage Regulation (+/-1%)

• Allows for faster response time and maximum motor starting ability

Quiet-Test

• Low-speed exercise mode for quieter weekly tests; 58 dB at 23'

Power Zone 410 Controller

• LCD Display provides service and maintenance intervals

• NFPA 110 Capable

4.5L Inline 4-Cylinder, Automotive-Style Engine

• Operates at half the speed of other engines (1800 vs 3600 RPM)

• Hydraulic lifter helps minimize maintenance costs

Tough, Durable All-Aluminum Sound Attenuated Enclosure

• Rhino Coat powder-coated finish keeps enclosure protected from the elements

• Lockable, external viewing window for quick status check

Automatic Shutdown Safety Feature

• High coolant temp, low coolant, low oil pressure and overspeed

Installation Flexibility*

• Can be installed within 18" of a building; *Always check local building codes

Transfer Switch (Sold Separately)

• Customize your system based on your actual application

Additional Features:

• Built-in Battery Charger (Battery Not Included)

Generac Standby Generators and Engines - Built In The USA*

• Built in the USA using domestic and foreign parts

Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 1781 lbs
• Length: 83-3/8"
• Width: 34"
• Height: 45-3/16"

Specifications:

• Voltage: 120, 208V
• Frequency: 60 Hz
• Running Wattage: 40,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 40,000 Watts
• LP Power Capacity: 40,000 Watts
• NG Fuel Consumption @ 50% Load: 289 ft3/hr
• NG Fuel Consumption @ 100% Load: 494 ft3/hr
• LP Fuel Consumption @ 50% Load: 4 gallons/hr
• LP Fuel Consumption @ 100% Load: 6 gallons/hr
• Amperage: 139A
• Decibel Rating @ 7m: 58 - 64 dbA
• Enclosure Material: Aluminum
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled

Engine:

• Engine Brand: Generac
• Starting System: 12v Auto Start
• Cubic Capacity: 4500 CC
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 2 Year and 5 Year
