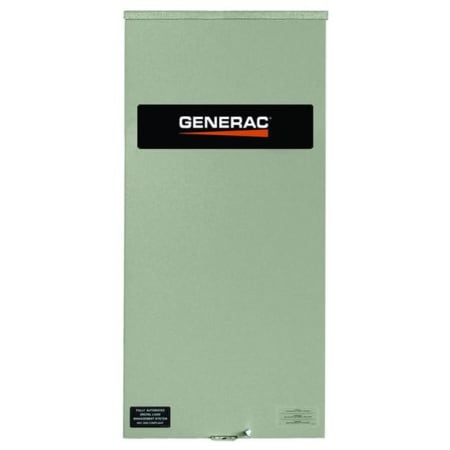

Generac 150-Amp 120 / 240V Single-Phase Service Disconnect Automatic Transfer Switch with Power Management

Features:

• Generac 150-Amp Automatic Smart Transfer Switch with Power Management
• For Generac Evolution™ and Generac Nexus™ Controllers
• Digital Power Management Technology (DPM)
• Allows your generator to work smarter, not harder
• Be Smart....Get More Out Of Your Generator
• Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads - No Hardware Required
• Great for homes with multiple air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
• Frequency (Hz) monitoring design, no control wire required
• Versatile design, easily prioritize loads and lock-out non-essential loads
• Service Entrance Rated (Load Side and Line Side Disconnect Breakers)
• Installs between main meter and service panel
• NEMA 3R Indoor/Outdoor Rated
• Aluminum, wall mountable weather-proof enclosure
• Electrostatically applied and baked powder coating paint (gray)
• Tech Spec Summary: Only For Use with Generac Generators
• Load Transition Type: Open Transition
• Withstand Rating: 22,000 Amps --- Lug Range: 250 MCM - #6
• 5-Year Limited Warranty

Overview:

• Transfer Switch Style: Service Disconnect
• Product Weight: 39 lbs
• Depth: 6-5/16"
• Width: 13-1/2"
• Height: 30"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 150A
• Max Utility Input: 150A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
