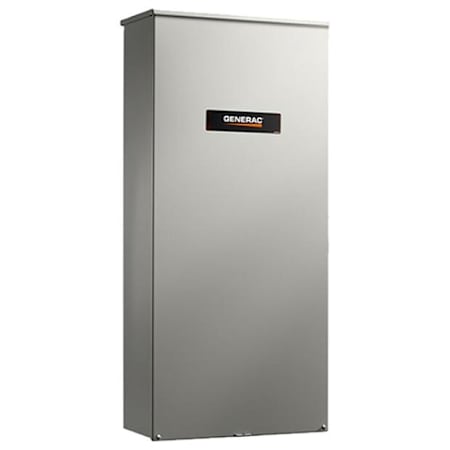

Generac Guardian 200-Amp 277 / 480V 3-Phase Service Disconnect Automatic Transfer Switch
Model: RTSW200K3|Item: bci4725063
from theGuardian Collection
$2,429.00
Special Order
Details
Features:
- 200-Amp Automatic Operation
- For use with Generac generators only
- 277/480V 3-Phase Automatic Transfer Switch
- Designed for use with 277/480V 3-phase generators
- For Generac Evolution™ and Generac Nexus™ controllers
- Service Entrance Rated (Load Side and Line Side Disconnect Breakers)
- Installs between main meter and service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint (gray)
- UL Listed 2200
Overview:
- Transfer Switch Style: Service Disconnect
- Product Weight: 55 lbs
- Depth: 10-5/8"
- Width: 21-13/16"
- Height: 48"
Specifications:
- Voltage: 277, 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 200A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance:
- Certifications: UL
- Warranty: 5 Year
Dimensions and Measurements
Depth | 10.6 in. |
Height | 48 in. |
Product Weight | 55 lbs. |
Width | 21.82 in. |
Dimensions and Measurements
Depth | 10.6 in. |
Height | 48 in. |
Product Weight | 55 lbs. |
Width | 21.82 in. |
Characteristics and Features
ATS Features | Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Characteristics and Features
ATS Features | Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Electrical and Operational Information
Amperage | 200 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 200 |
Max Utility Input | 200 |
Transfer Switch Style | Service Disconnect |
Voltage | 277, 480 |
Electrical and Operational Information
Amperage | 200 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 200 |
Max Utility Input | 200 |
Transfer Switch Style | Service Disconnect |
Voltage | 277, 480 |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 5 Year |
