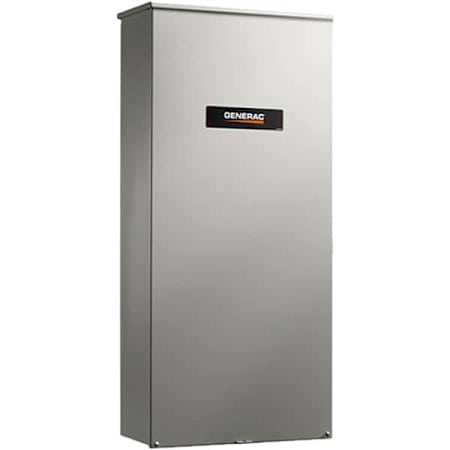

Generac 200-Amp (120 / 240V) 3-Phase Outdoor Service Disconnect Automatic Transfer Switch
Model: RTSW200J3|Item: bci4725062
from theGuardian Collection
Details
Features:
200-Amp Automatic Operation
- For Use With Generac Generators Only
120/240V 3-Phase Automatic Transfer Switch
- Designed for use with 120/240V 3 Phase generators
- For Generac Evolution and Generac Nexus Controllers
Service Entrance Rated (Load Side and Line Side Disc. Breakers)
- Installs between main meter and service panel
NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint
UL Listed 2200
Overview:
- Transfer Switch Style: Service Disconnect
- Product Weight: 50 lbs
- Width: 21-13/16"
- Height: 10-5/8"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 200A
- Max Utility Input: 200A
- Enclosure Material: NEMA 3R
Product Assurance:
- Certifications: UL
- Warranty: 5 Year
Specifications
Dimensions and Measurements
Depth | 10.6 in. |
Height | 10.6 in. |
Product Weight | 50 lbs. |
Width | 21.82 in. |
Dimensions and Measurements
Depth | 10.6 in. |
Height | 10.6 in. |
Product Weight | 50 lbs. |
Width | 21.82 in. |
Characteristics and Features
ATS Features | Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Characteristics and Features
ATS Features | Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Electrical and Operational Information
Amperage | 200 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 200 |
Max Utility Input | 200 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 240 |
Electrical and Operational Information
Amperage | 200 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 200 |
Max Utility Input | 200 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Made in America | Yes |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Certifications | UL |
Made in America | Yes |
Manufacturer Warranty | 5 Year |
