The Generac RTSW100G3 has been discontinued
** See similar or replacement items below **
Item # bci4725067

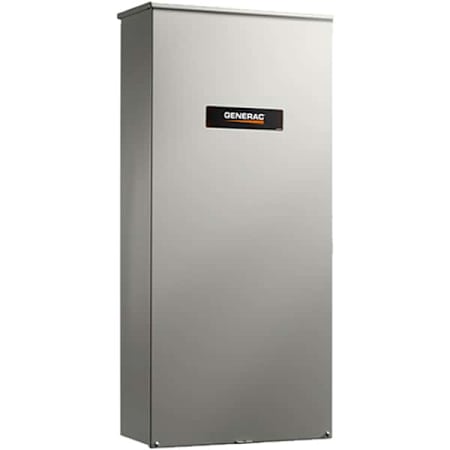

Generac Guardian 100-Amp 120 / 208V 3-Phase Service Disconnect Automatic Transfer Switch
Model: RTSW100G3|Item: bci4725067
from theGuardian Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Automatic Operation
- For Use With Generac Generators Only
- 120/208V 3-Phase Automatic Transfer Switch
- Designed for use with 120/208V 3 Phase generators
- For Generac Evolution™ and Generac Nexus™ Controllers
- Service Entrance Rated (Load Side and Line Side Disconnect Breakers)
- Installs between main meter and service panel
- NEMA 3R Indoor/Outdoor Rated
- Aluminum, wall mountable weather-proof enclosure
- Electrostatically applied and baked powder paint (gray)
- UL Listed 2200
Overview:
- Transfer Switch Style: Service Disconnect
- Product Weight: 50 lbs
- Depth: 10-5/8"
- Width: 21-13/16"
- Height: 48"
Specifications:
- Voltage: 120, 208V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 100A
- Max Utility Input: 100A
- Enclosure Material: NEMA 3R
Product Assurance:
- Certifications: UL
- Warranty: 5 Year
Dimensions and Measurements
Depth | 10.6 in. |
Height | 48 in. |
Product Weight | 50 lbs. |
Width | 21.82 in. |
Dimensions and Measurements
Depth | 10.6 in. |
Height | 48 in. |
Product Weight | 50 lbs. |
Width | 21.82 in. |
Characteristics and Features
ATS Features | Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Characteristics and Features
ATS Features | Integrated Service Disconnect |
Enclosure Material | NEMA 3R |
Electrical and Operational Information
Amperage | 100 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 100 |
Max Utility Input | 100 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 208 |
Electrical and Operational Information
Amperage | 100 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 100 |
Max Utility Input | 100 |
Transfer Switch Style | Service Disconnect |
Voltage | 120, 208 |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Certifications | UL |
Manufacturer Warranty | 5 Year |
