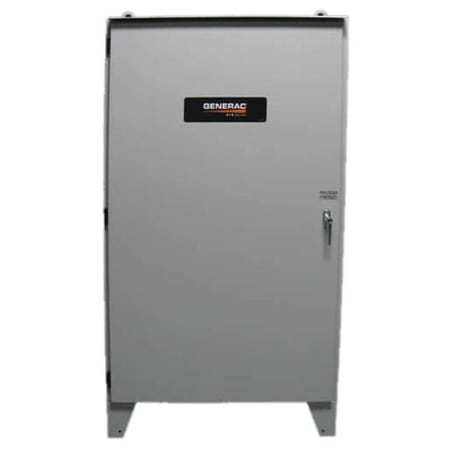

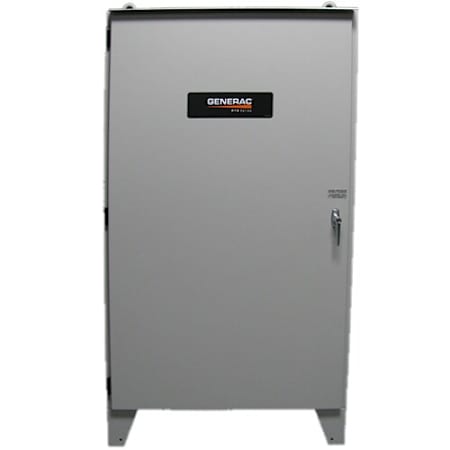

Generac Guardian Series 800-Amp (277 / 480V) 3-Phase Outdoor Automatic Transfer Switch
Model: RTSN800K3|Item: bci4725102
from theGuardian Series Collection
$6,249.00
Special Order
Details
Features:
3-Phase Automatic Transfer switch
- Only works with 277/480 3-Phase generators
Fully Automatic Operation
Standard Installation
- May require a sub-panel or disconnect for serviceability
Larger Applications
- Nema 3R Aluminum Enclosure
For Use With Generac Generators Only
UL Listed 2200
Overview:
- Transfer Switch Style: Standard Installation
- Product Weight: 469 lbs
- Width: 36"
- Height: 21"
Specifications:
- Voltage: 277, 480V
- Frequency: 60 Hz
- Electrical Phases: 3
- Max Generator Input: 800A
- Max Utility Input: 800A
- Enclosure Material: NEMA 3R
Product Assurance:
- Certifications: UL
- Warranty: 5 Year
Dimensions and Measurements
Depth | 21 in. |
Height | 21 in. |
Length | 66 in. |
Product Weight | 469 lbs. |
Width | 36 in. |
Dimensions and Measurements
Depth | 21 in. |
Height | 21 in. |
Length | 66 in. |
Product Weight | 469 lbs. |
Width | 36 in. |
Characteristics and Features
Enclosure Material | NEMA 3R |
Characteristics and Features
Enclosure Material | NEMA 3R |
Electrical and Operational Information
Amperage | 800 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 800 |
Max Utility Input | 800 |
Transfer Switch Style | Standard Installation |
Voltage | 277, 480 |
Electrical and Operational Information
Amperage | 800 |
Electrical Phases | 3 |
Frequency | 60 Hertz |
Max Generator Input | 800 |
Max Utility Input | 800 |
Transfer Switch Style | Standard Installation |
Voltage | 277, 480 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 5 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | Yes |
Certifications | UL |
Manufacturer Warranty | 5 Year |
